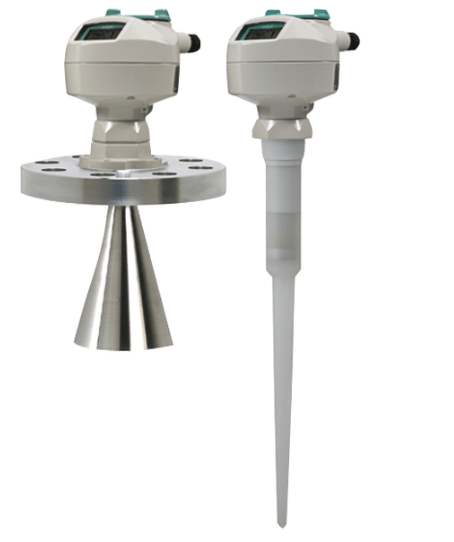

SITRANS LR 200 RADAR LEVEL GAUGE 7ML5422-3AA30
SITRANS LR 200: 2-WIRE PULSE RADAR LEVEL GAUGE, ROD ANTENNA MADE OF POLYPROPYLENE, 6 GHZ, MEASURING RANGE UP TO 20 M; FOR CONTINUOUS MEASUREMENT OF LIQUIDS AND SLUDGE IN STORAGE TANKS AND WORKING TANKS WITH HIGH TEMPERATURES AND PRESSURE
SITRANS LR 200: ONE-PIECE POLYPROPYLENE ROD ANTENNA 2-WIRE, 6 GHZ PULSE RADAR LEVEL TRANSMITTER FOR MEASURING RANGES UP TO 20 M (66 FT);
SUITABLE FOR THE CONTINUOUS MONITORING OF LIQUIDS AND SLURRIES IN STORAGE AND PROCESS TANKS WITH HIGH TEMPERATURES AND PRESSURE.
HOUSING /CABLE INSERTION: EPOXY-COATED ALUMINUM, 2 X M20 X1.5 POLYPROPYLENE ANTENNA - (MAX. PRESSURE 3 BAR AND +80 C): 1-1/2 INCH NPT ((TAPER), ANSI/ASME B1.20.1), WITH INTEGRATED 100 MM SHIELDING APPROVALS: GENERAL USE, CE, R&TTE, C-TICK COMMUNICATION /OUTPUT: 4... 20 MA, HARD, STARTING AT <3,6 MA .
