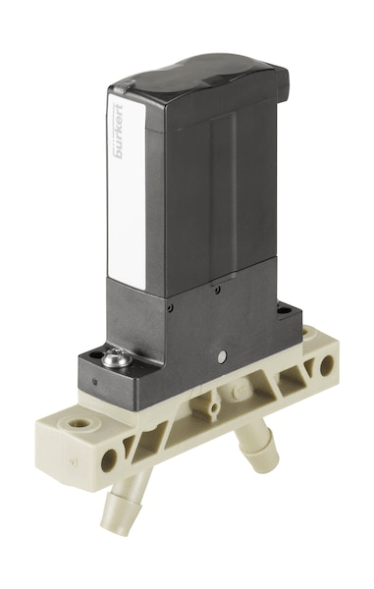

2/2- and 3/2-way Burkert TwinPower Spiral Solenoid Valve with Insulating membrane (247771)

The Type 6626 combines a reliable and proven quality principle with an innovative actuator. The new Burkert TwinPower drive concept has significantly reduced the mounting space while maintaining the same power characteristics. A high-quality valve with a separation of media with a width of only 16 mm, an internal passage diameter of 3.0 mm and a hydraulic resistance of 2 bars, has operational properties similar to those of a traditional 22 mm device. In addition, the built-in power reduction function reduces energy consumption by 75%. Along with other design changes, the heat transfer to the environment is reduced to a minimum. The design advantages also include excellent cleanability and high reliability. Due to the use of high-quality materials, the Type 6626 is also suitable for use in aggressive environments. The valve is available in 2/2-way and 3/2-way versions
