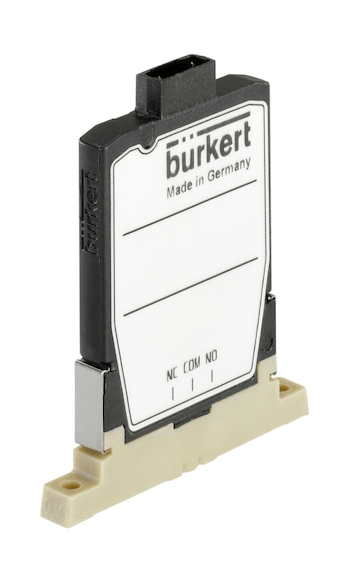

The Type 6650, with a mounting size of only 4.5 mm, sets new standards for the miniaturization of magnetic valves with media separation. Thanks to the optimized design, reproducible and accurate dosing is ensured, good washability and, due to the use of high-quality materials, the possibility of application also in aggressive environments. Due to the choice between two nominal internal diameters of 0.4 and 0.8 mm, as well as a 2/2- and 3/2-way function, the valve is ideally suited for applications where high flow rates are required with minimal installation space. The Type 6650, thanks to its 4.5 mm mounting size, opens up new possibilities, especially in combination with dosing in microtiter plates of the 384th size. This valve, operating according to the well-known principle of the magnetic armature of an electromagnet (type 0330), is an upgraded version of the successfully used type 127.
Description
Features
Reviews
Features
Connection thread
0,4 mm
Power Supply, In
- 24V AC/DC
Temperature Tmax, °C
0 до +50°C
Seal material
FFKM (Perfluoroelastomer rubber)
Weight, kg
0,013 kg
Brand
Burkert
