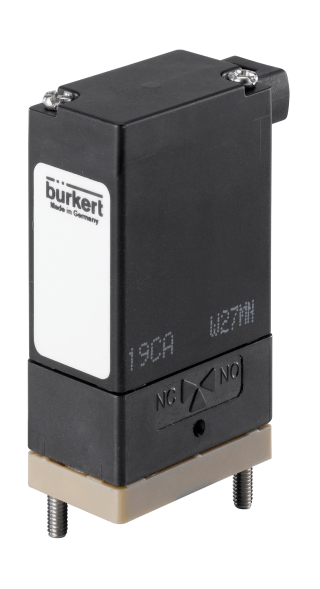

2/2- or 3/2-way solenoid valve with insulating membrane (77812)

The unique Burkert Type 127 solenoid valve is a pioneer among small valves with media separation and is designed for use in laboratory, medical and analytical equipment. Equipped with a "high-quality" mechanism involving a separation membrane between the drive and the working medium, it is still an advanced technical achievement. The valve ensures precise switching of the smallest volumes, including aggressive media, with minimal temperature exposure through the coil. A special feature of the valve is the minimum internal volume with an easily flushed stagnant zone. Special models with virtually no stagnant zones are available on request. The valves can be installed on mounting panels with common electrical wiring. It is applicable for aggressive and clean gases and liquids with low flow rate and pressure from vacuum to 2 bar; made of chemically resistant plastics PVDF, ETFE, PEEK. DN 1.5-1.6 mm.
