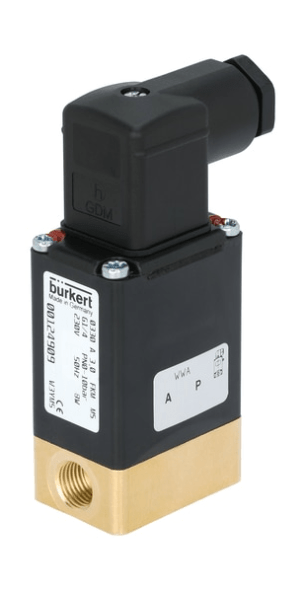

2/2-way or 3/2-way direct acting pendulum valve (22619)

The 0330 valve is a direct-acting pendulum valve with medium insulation. Available in 2/2-way or 3/2-way versions. The 3/2-way version can be used as a distribution or mixing valve. Depending on the application, different membrane materials and operating principles are available. The standard brass housing meets the requirements of European quality standards for drinking water. Case material: stainless steel (316L), PVDF and polypropylene. Electromagnetic coils are pressed with an epoxy material with high resistance to chemical action. The 0330 is equipped with manual controls for commissioning and testing. To reduce energy consumption, all coils can be supplied with an electronic device to reduce power or in a pulsed version. Switching is carried out using feedback from the position sensor via a binary signal or a NAMUR signal. When equipped with a connector according to DIN EN 17301-803, the valves conform to the requirements of the IP65/67 protection class, and when equipped with a stainless steel or plastic housing, they comply with the NEMA 4X standard.
