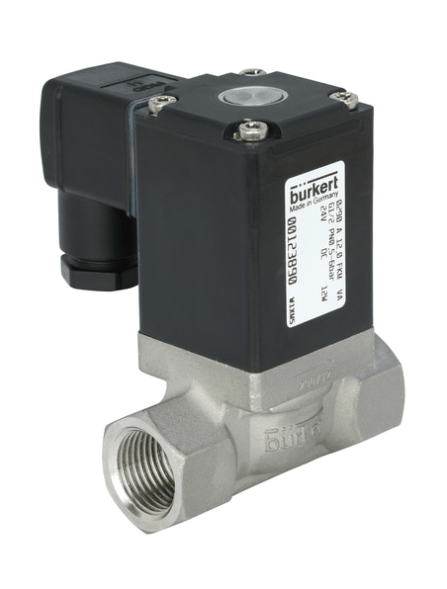

2/2-way diaphragm valve with servo control (43706)

The 0290 valve is a diaphragm valve with servo control of the S.EV series. The valve opens in the absence of a pressure drop. The opening process is supported by a strong connection of the membrane to the magnet anchor. At the same time, the built-in Soft Kick function ensures that the valve opens without damaging the material. A variety of membrane materials are available to choose from according to the field of application. Stainless steel housings are also available. The electromagnetic coils are pressed with epoxy material with high chemical resistance. To reduce power consumption in all DC-powered versions, an electronic Kick and Drop device is poured into the electromagnetic coil. Equipped with a connector according to DIN EN 175301-803, form A, the valves meet the requirements of the IP65 protection degree, with a stainless steel housing - the requirements of NEMA 4X.
