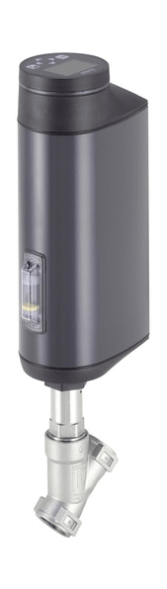

2/2-way Inclined Seat Control Valve with electric motor (295779)

The innovative Burkert type 3360 control valve is the optimal solution for control tasks in difficult operating conditions. The electric drive of the inclined seat valve with a ball screw transmission positions the control cone with special precision. At the same time, the positioning speed of the control valve is exceptionally high and is 6 mm/s, i.e. the reaction to process signals occurs almost without delay, in addition, the speed can be adjusted depending on the customer's needs. Fluctuations or pressure drops in the medium do not change the stroke of the inclined valve. If necessary, when the power supply is turned off, the reduction to a safe position (normal position) can be carried out using an additional energy accumulator. The electric drive and control valve are a perfectly matched design with a solid surface. This allows you to comply with hygienic requirements regarding fast washing and removal of all residues. Harsh environmental conditions do not pose problems for the type 3360 electric tilt valve, as it has a protection class of IP65/IP67, as well as high insensitivity to surges and vibrations. Thanks to the reliable self-regulating stem seal with replaceable V-shaped seals, the inclined valve has a maximum service life and has maximum tightness. The Type 3360 control valve, suitable for use with field tires, offers the user a variety of auxiliary functions for process control, valve diagnostics and preventive maintenance, which is a crucial advantage of modern process automation.
