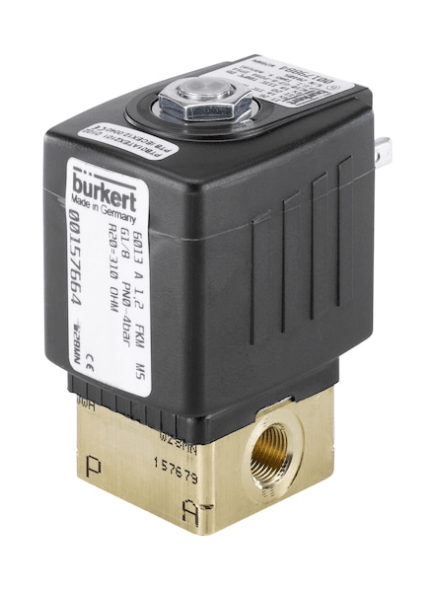

2/2-way direct acting plunger valve (125313)

Valve 6013 is a direct acting plunger valve. To protect against leaks and pressure loss, the stopper and the guide tube are welded to each other. Depending on the application, various combinations of sealing materials are available. The special flange design from Burkert (SFB) allows for compact valve placement on a single multi-seat mounting plate. A polyamide coating is applied to the coils or crimping is performed with a high-strength epoxy material. To reduce energy consumption during operation, pulse coils can be purchased, as well as electronic equipment for forced excitation "Kick and Drop" (connector 2511). An additional manual control option allows for quick commissioning and easy maintenance. When equipped with a connector according to DIN EN 17301-803, form A valves meet the requirements of the IP65 protection class. The valves are made of stainless steel and comply with the NEMA 4X standard.
