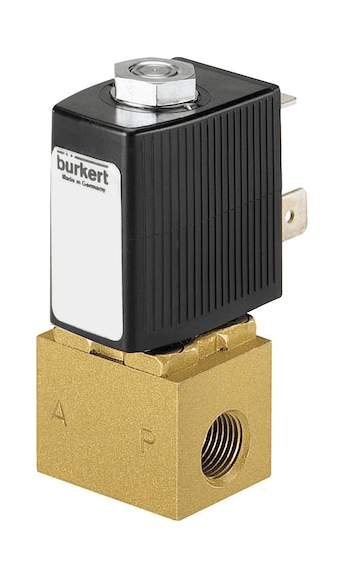

2/2-way direct acting plunger valve (134104)

Valve 6011 is a direct acting plunger valve. To protect against leaks and pressure loss, the stopper and the guide tube are welded to each other. Depending on the application, various combinations of sealing materials are available. The special design of the Burkert flange (SFB) allows for compact valve placement on a single multi-seat mounting plate. To implement flexible connection, quick-release fittings can be selected. Polyamide coating is applied to the coils. When equipped with a connector according to DIN EN 17301-803, form B or C valves meet the requirements of the IP65 protection class.
