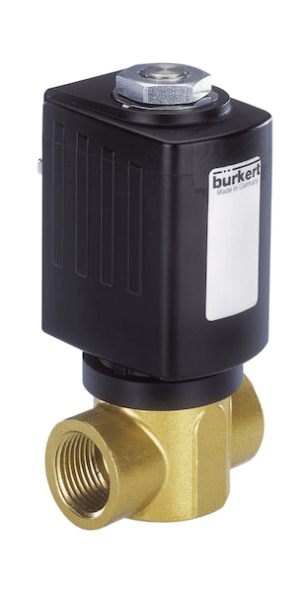

2/2-way direct acting plunger valve (178249)

The valve 6027 is a direct acting plunger valve. To protect against leaks and pressure loss, the stopper and the guide tube are welded to each other. Depending on the application, various combinations of sealing materials are available. The coils are pressed with an epoxy material with high chemical resistance. To reduce power consumption during operation, you can purchase electronics for forced excitation "Kick and Drop" (connector 2511). The use of an end sealing ring (optional) allows you to extend the service life of the valve when working with dry gases. Special sealing technologies are used for high-pressure applications. When equipped with a connector according to DIN EN 17301-803 form A, the valves meet the requirements of the IP65 protection class. The valves are made of stainless steel and comply with the NEMA 4X standard.
