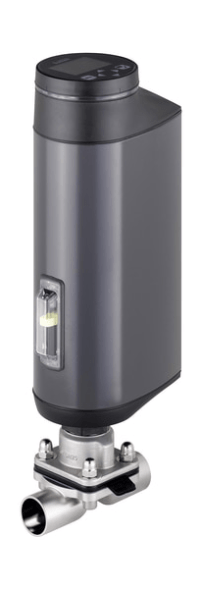

2-way regulating diaphragm valve with electric drive (317323)

The Burkert Type 3363 innovative diaphragm valve is a technical solution for two-position control (Open/Close) in industries where contact with the working environment is expected, such as food, cosmetics, pharmaceutical and biopharmaceutical. The electric drive with a ball screw transmission closes the valve almost without delay with an exceptionally high speed of 4mm/s for electric drives.If necessary, it can be brought to a safe position in case of a power failure using a battery (optional). The valve position is insensitive to pressure fluctuations or hydraulic shocks in the working environment. In addition, the device has important functions for process control, valve diagnostics and preventive maintenance. In addition to the mechanical position indicator, there is a 360° LED indicator ring that displays the valve position, as well as warnings and errors. Communication is carried out using analog signals, as well as using modern systems using field buses. Well-proven valve housings and membranes ensure the overlap of the working environment, are easy to clean and are characterized by minimal stagnant zones. For the type 3363 valve, which has a high degree of IP protection and low sensitivity to hydraulic shock and vibration, even the harshest environmental conditions are not difficult. The hygienic design allows for quick and high-quality external cleaning.The drive force can be precisely adjusted according to the operating conditions, increasing the service life of the membrane to the maximum value.
