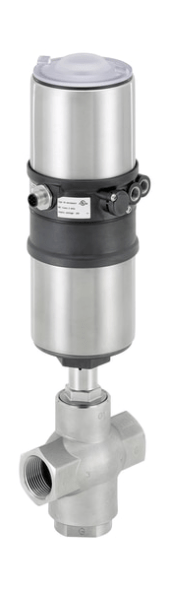

3-way seat valve with pneumatic actuator of the ELEMENT series (292478)

The Burkert type 2106 3-way seat valve consists of an ELEMENT series pneumatic actuator and a stainless steel 3-way valve body. By rearranging the working connections and pressure line connections, various flow control functions can be implemented, for example, mixing or separating media. The improved valve body type 2006 allows you to achieve the best throughput performance. The self-regulating oil seal ensures high tightness and reliable operation for many years. The design of the type 2106 3-way valve has all the advantages of modern decentralized automation: direct connection of the control unit to the actuator, which provides a compact, user-friendly design, integrated air supply lines, protection class IP65/67/NEMA4X and a high degree of chemical resistance. Other advantages of the valve are the integrated Fieldbus interface and the explosion-proof control unit (additional options). Thus, the compact type 2106 valve is often an economical alternative to two separate shut-off valves.
