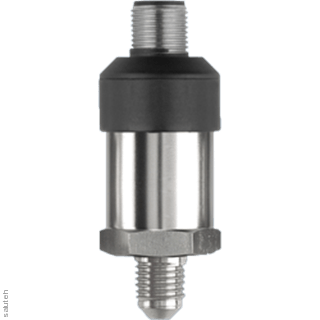

Pressure transmitter MIDAS 40.1002 C08 401002/000-460-405-502-20-601-61/000

40.1002 Pressure transducer (anal.) JUMO MIDAS C08

• JUMO MIDAS 08 Pressure transducer
• Sensor: ceramic cell
• Upper measurement limits: from 1.6 to 60 bar (relative pressure)
• Output signal: 4-20 mA, 0-10V, 0.5-4.5V, 1-5V, 1-6V
• Design: compact, IP 65, IP 67

The JUMO MIDAS C08 pressure transducer is designed to measure the relative pressure of liquids and gases.

Main technical characteristics

Sensor:

• ceramic cell
• piezoresistive measurement principle

Measuring ranges:

• -1...0,6 /1,5 /3 /5 /9 /15 /24 bar (relative pressure)
• 0...1,6 /2,5 /4 /6 /10 /16 /25 /40 /60 /100 bar (relative pressure)

Output signal: 4-20 mA, 0-10 V, 0.5..4.5V, 1..5V, 1..6V

Error: ± 0.5%
