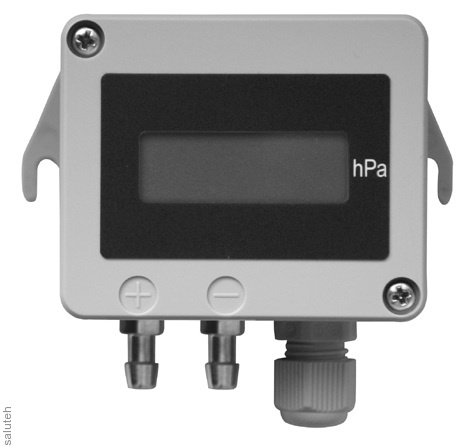

40.2005 Multi-band pressure and pressure difference converter

Multi-band converter
pressures and pressure differences

Sensor: piezoresistive
Upper limits of measurements: from 2.5 to 100 gPa
Output signal: 0/4-20 mA or 0-10 V
Structural design: plastic housing, IP 54

The pressure transducer is designed to measure the pressure difference in dry, non-ionizing and non-aggressive gaseous media.

Main technical characteristics

Sensor: piezoresistive measurement principle, for non-aggressive gaseous media

Measuring ranges: 0..2,5/5/7,5/10 gPa or 0..25/50/75/100 hPa

Output signal: 0/4...20 mA or 0...10 V (3-wire circuit, switchable)

Error rate: ± 2%

Temperature of the measured medium: +10...+50°C

Ambient temperature: +10...
