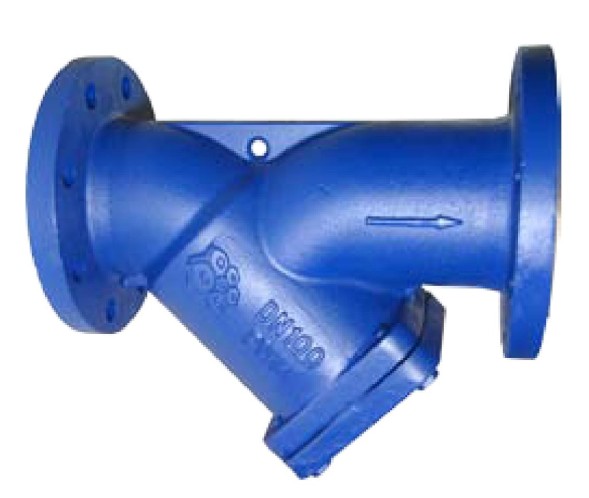

Flange filter Rushwork 600-16/1.6 PN16 GG25, Tmax=+200°C. The mesh is 1.6 mm. with drain plug

600 Flanged cast iron mesh filter PN16 Tmax=+300oCg, high pressure, (w)

Purpose: the filter is installed on pipelines to protect against contamination of sequentially connected installations, filtration and collection of dirt particles.

• Working environment: water, gas, petroleum products, other non-aggressive liquid and gaseous media.
• Working environment temperature: up to 180 ° C.
• Nominal pressure: 1.6 (16) MPa (kgf/cm2).
• Connection to the pipeline: flanged.
• Materials of the main parts:
• Body, lid — cast iron SCH18.
• The cork is steel 20.
• The mesh element is stainless steel 12X18H10T.
• The gasket is fluoroplast F4.
• Stud, nut — steel 35.
• Spring washer — steel 65G.

Mesh filter FS46CH3FT

• 1 Building of the AB18
• 2 The cover of the AB18
• 3 Mesh element 12X18H
• 4 Fluoroplast F Gasket
• 5 Traffic jam                      Steel 20
• 6 Stud(Bolt)        Steel 35
• 7 Spring Steel Washer
• 8 Nut                        Steel 35
