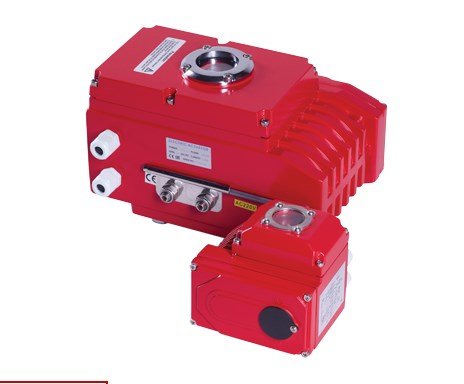

900-220-0080-F05/07-14’ 14 Rushwork Electric drive (220V) Non-rotating
The electric drive is designed to complete shut-off, control and shut-off valves for general industrial applications.
|
Body: |
Aluminum alloy, protection IP 67, IP 68 (optional) |
|
Voltage: |
Standard 220 VAC/1F, 380V/440V/3F, 50/60Hz ± 10% 24VDC/110VDC/220 VDC |
|
Control voltage: |
110VAC/1Ф, 50/60Гц, ± 10% |
|
Engine: |
Short-circuited, asynchronous |
|
Limit switches: |
2 X Opening/Closing, SPDI, 250 VAC 10A |
|
Auxiliary Limit switch: |
2 X Opening/Closing, SPDI, 250 VAC |
|
Moving: |
90°…270° ± 10% |
|
Reliability/Operating temperature: |
Internal thermal protection. Opening 110°C ± 5°C Closing 97°C ± 5°C |
|
The indicator: |
End position indicator |
|
Manual operations: |
Turn off the device, use the key |
|
An auto-locking device: |
With automatic locking of the worm gear and worm gear |
|
Mechanical limiter: |
2 external adjustable stoppers |
|
The heater: |
30W (110V/220VAC) , anti-condensate |
|
Cable connection: |
2xM18 |
|
Ambient temperature: |
- 20°C...+ 70°C |
|
Lubricant: |
Molybdenum |
|
Materials: |
Steel, Aluminum alloy, Aluminum powder, Polycarbonate |
|
Ambient humidity: |
Max. 90% RH |
