| TECHNICAL DATA: | |

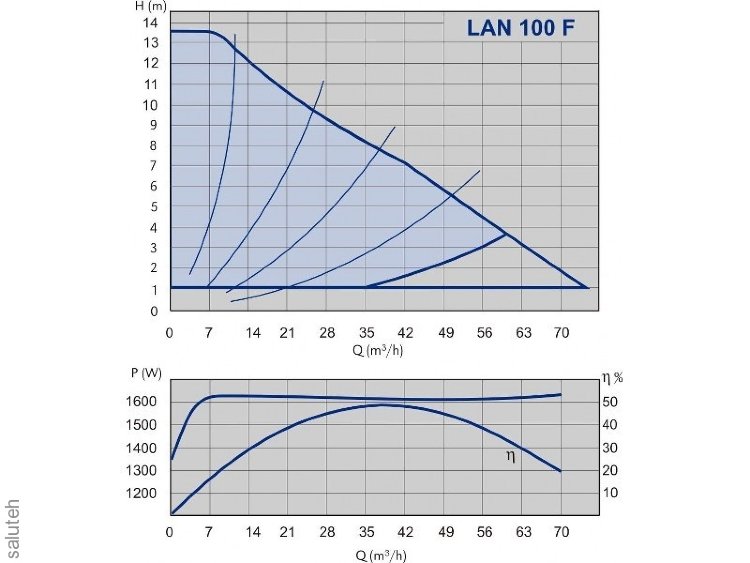

| Maximum performance Q: | 78 m3/h |
| Maximum lifting height H: | 13 m |
| Nominal pressure: | PN 6 bar |
| ELECTRICAL PARAMETERS:: | |
| Power: | 45 - 1600W |
| Rated current: | 6,9 A |
| Voltage: | 1 ~ 230 V |
| Insulation class: | H |
| Degree of protection: | IP 44 |
| INSTALLATION AND CHARACTERISTICS OF THE LIQUID: | |
| Flange Size: | DN 100 |
| Mounting length: | 360 mm |
| Temperature range of the liquid: | -10 – +110 oC |
| Operating temperature range: | Features Brand IMP No reviews yet — yours could be the first. All reviews 0 Список отзывов пуст
|
