| TECHNICAL DATA: | |

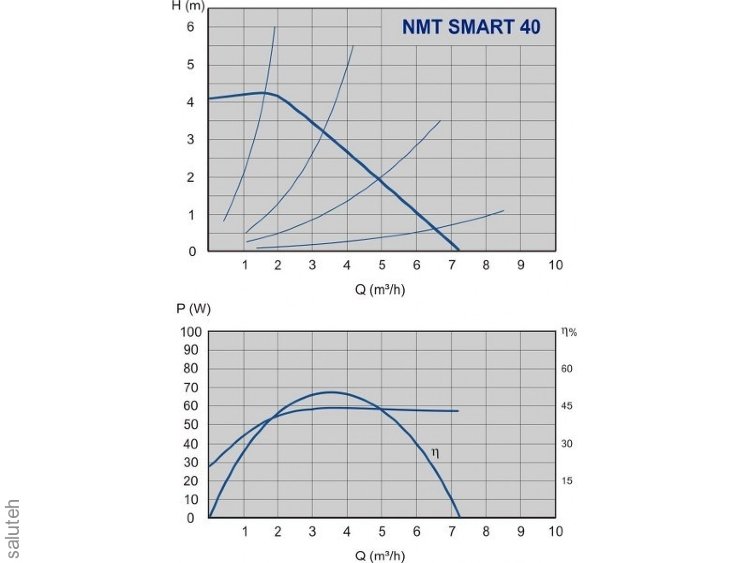

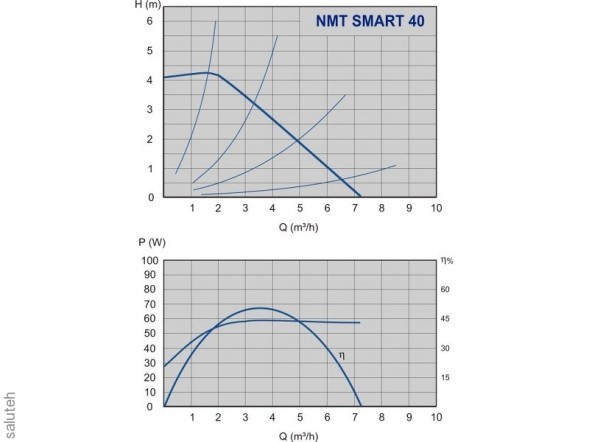

| Maximum performance Q: | 7.5 m3/h |
| Maximum lifting height H: | 4 m |
| Nominal pressure: | PN 6/10 bar |
| ELECTRICAL PARAMETERS:: | |
| Power: | 7 - 60W |
| Rated current: | 0,1 - 0,5 A |
| Voltage: | 1 ~ 230 V |
| Insulation class: | F |
| Degree of protection: | IP 44 |
| INSTALLATION AND CHARACTERISTICS OF THE LIQUID: | |
| Flange Size: | DN 40 |
| Mounting length: | 220 mm |
| Temperature range of the liquid: | +2 – +110 oC |
| Operating temperature range: |
