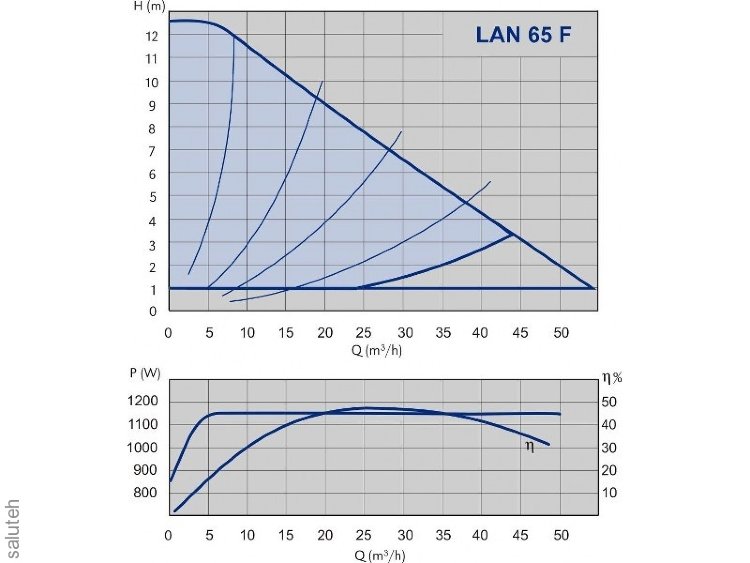

| TECHNICAL DATA: | |
| Maximum performance Q: | 65 m3/h |
| Maximum lifting height H: | 13 m |
| Nominal pressure: | PN 6/10 bar |
| ELECTRICAL PARAMETERS:: | |
| Power: | 38 - 1100 W |
| Rated current: | 4,8 A |
| Voltage: | 1 ~ 230 V |
| Insulation class: | H |
| Degree of protection: | IP 44 |
| INSTALLATION AND CHARACTERISTICS OF THE LIQUID: | |
| Flange Size: | DN 65 |
| Mounting length: | 340 mm |
| Temperature range of the liquid: | -10 – +110 oC |
| Operating temperature range: |
