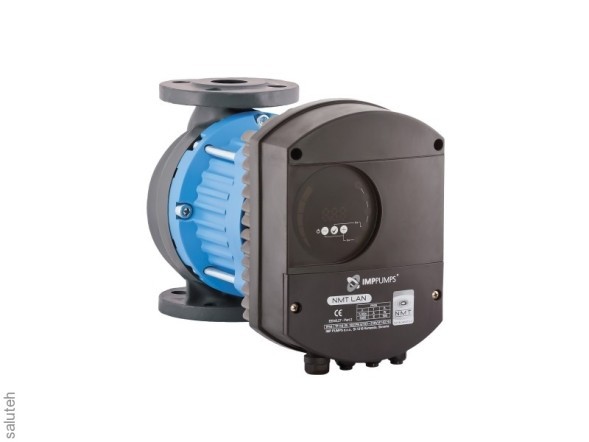

979523651 NMT LAN F NMT LAN 40-180 F Circulation Pump

Energy Efficiency Index: EEI ≤ 0,27 - Part 2
TECHNICAL DATA:
Maximum capacity Q: 31 m3/h
Maximum lifting height H: 18 m
Nominal pressure: PN 6/10 bar
ELECTRICAL PARAMETERS::
Power: 20-800 Watts
Rated current: 3.6A
Voltage: 1 ~ 230 V
Insulation class: H
Degree of protection: IP 44
INSTALLATION AND CHARACTERISTICS OF THE LIQUID:
Flange size: DN 40
Mounting length: 250 mm
Temperature range of the liquid: -10 – +110 oC
Operating temperature range: 0 – 40 oC
Maximum pressure at 50/80/110oC: 0,05/0,8/1,4 The bar
materials:
Impeller: stainless steel
Body material: Grey cast iron
other:
Body design: single
Net weight: 29 kg
