| TECHNICAL DATA: | |

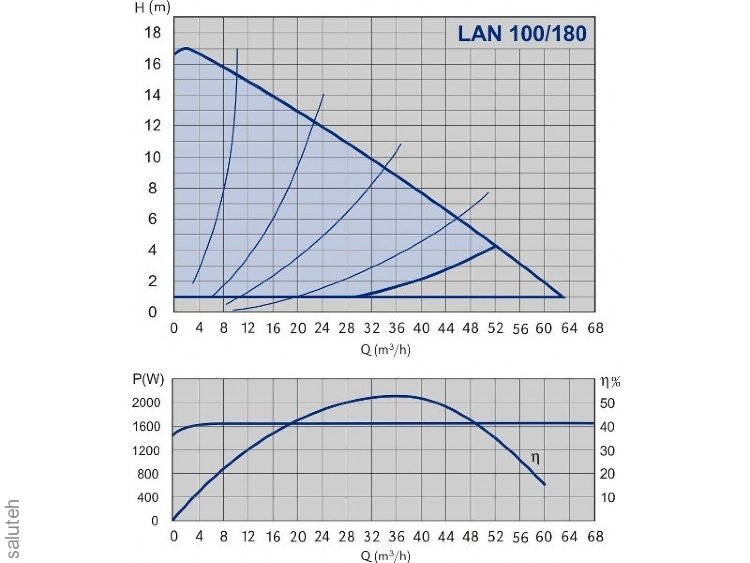

| Maximum performance Q: | 63 m3/h |
| Maximum lifting height H: | 16.5 m |
| Nominal pressure: | PN 10 bar |
| ELECTRICAL PARAMETERS:: | |
| Power: | 20-1600 Watts |
| Rated current: | 7,2 A |
| Voltage: | 1 ~ 230 V |
| Insulation class: | H |
| Degree of protection: | IP 44 |
| INSTALLATION AND CHARACTERISTICS OF THE LIQUID: | |
| Flange Size: | DN 100 |
| Mounting length: | 360 mm |
| Temperature range of the liquid: | -10 – +110 oC |
| Operating temperature range: |
