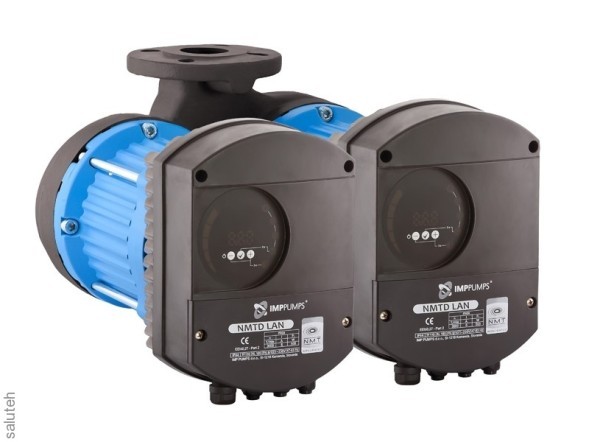

979523661 ° F NMTD and F NMTD and 80-180 F (PN 6)

Energy Efficiency Index: EEI ≤ 0,24 - Part 2
TECHNICAL DATA:
Maximum capacity Q: 63 m3/h
Maximum lifting height H: 17 m
Nominal pressure: PN 6 bar
ELECTRICAL PARAMETERS::
Power: 20-1600 Watts
Rated current: 7.3A
Voltage: 1 ~ 230 V
Insulation class: H
Degree of protection: IP 44
INSTALLATION AND CHARACTERISTICS OF THE LIQUID:
Flange size: DN 80
Mounting length: 360 mm
Temperature range of the liquid: -10 – +110 oC
Operating temperature range: 0 – 40 oC
Maximum pressure at 50/80/110oC: 0,3/1/1,6 The bar
materials:
Impeller: stainless steel
Body material: Grey cast iron
other:
Body design: double
Net weight: 76 kg
