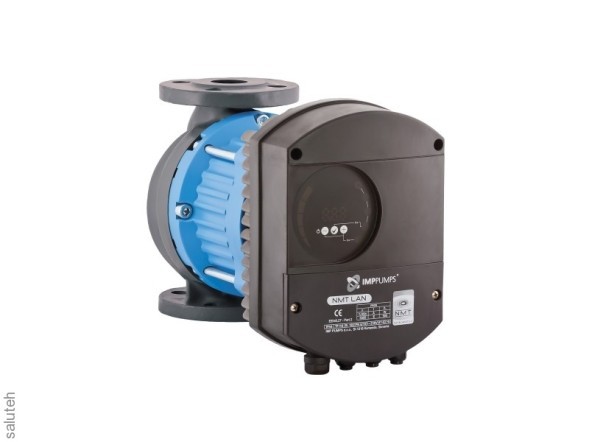

979523715 Циркуляционный насос NMT LAN C F NMT LAN C 50-180 F

Energy Efficiency Index: EEI ≤ 0,26 - Part 2
TECHNICAL DATA:
Maximum capacity Q: 45 m3/h
Maximum lifting height H: 17 m
Nominal pressure: PN 6/10 bar
ELECTRICAL PARAMETERS::
Power: 20-1100 W
Rated current: 4.8A
Voltage: 1 ~ 230 V
Insulation class: H
Degree of protection: IP 44
INSTALLATION AND CHARACTERISTICS OF THE LIQUID:
Flange size: DN 50
Mounting length: 280 mm
Temperature range of the liquid: -10 – +110 oC
Operating temperature range: 0 – 40 oC
Maximum pressure at 50/80/110oC: 0,3/1/1,6 The bar
materials:
Impeller: stainless steel
Body material: Grey cast iron
other:
Body design: single
Net weight: 30 kg
