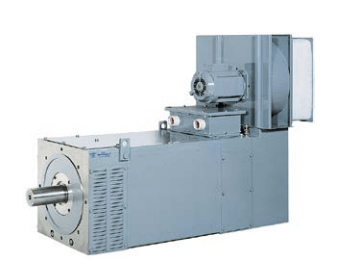

Three-phase asynchronous motors with low inertia Oemer Motori series HQLa-Li Sincrovert They are designed to work on modern production lines, where high engine dynamics are an important indicator. The performance is achieved due to the advantageous ratio between the rated torque and the inertia of rotation.
The design, materials and professional approach made it possible to create maximum acceleration and performance with minimal energy consumption.
The cooling system has been improved by optimizing the design to evenly ventilate all parts subjected to thermal loads.
The body and flanges are made of cast iron, the shaft is made of C45 or 39NiCrMo steel on request, mounting versions are IM1001, IM2001, IM3001, other vertical and horizontal fasteners on request.
Parameters of low inertia asynchronous motors of the Oemer Motori HQLa-Li series:
Rated power: 30 - 289 kW;Overall height: 180, 225, 280 mm;
Rated torque: 550 - 2870 Nm;
Rated speed: 500 /580 /650 /1000 rpm;
Maximum speed: up to 4300 rpm;
Control type: as part of a frequency-controlled electric drive;
Degree of protection: IP 23S;
Cooling method: IC 06, radial fan with air filter;
Insulation class: F;
Типоразмеры: HQLa-Li 180S, HQLa-Li 180M, HQLa-Li 180L, HQLa-Li 180P, HQLa-Li 180LX, HQLa-Li 225M, HQLa-Li 225L, HQLa-Li 225P, HQLa-Li 225X, HQLa-Li 225L.
Design features and advantages of Oemer Motori engines of the HQLa-Li series
- high torque and low inertia;- high power/torque values ;
- excellent dynamic response;
- modern design;
- compactness;
- efficient cooling;
- Great possibilities of additional tooling and optional features.
Applications of Oemer Motori HQLa-Li series electric motors: sheet metal, paper industry, metallurgy (iron, steel).
Specialized solutions based on Oemer Motori HQLa-Li engines for use in:
- paper and cardboard cutting machines;- disc scissors;
- sheet metal cutting lines;
- presses for sheet metal;
- paper industry lines;
- metal pipe processing lines;
- machines for the production of metal mesh;
- test systems for transmissions.
If you have any questions about the selection of asynchronous electric motors of the Oemer Motori HQLa-Li series, please contact our engineers by phone.saluteh.
