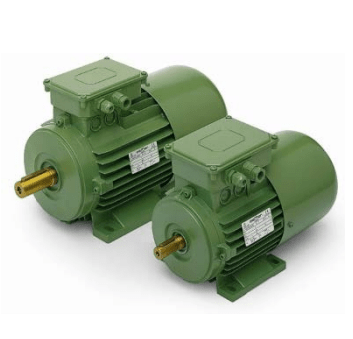

Small Oemer Motori three-phase asynchronous motors series MTS - MTS3 Sincrovert designed according to IEC standards for output power and overall characteristics, optimized for variable speed operation, powered by an inverter. Excellent quality-cost ratio, applicable in many industries. Standardized dimensions and performance characteristics give flexibility in use, ease of maintenance and replacement of consumables.
The high energy efficiency class of the work is IE2 /IE3.
The body and flanges are made of aluminum, the shaft is made of C45 steel, the mounting version is IM1001, other fasteners IM 3001, IM 2001, IM 3611 on request.
Parameters of low inertia asynchronous motors of the Oemer Motori MTS - MTS3 series:
Rated power: 0.11 - 15 kW;Overall height: 63, 71, 80, 90, 100, 112, 132, 160 mm;
Rated torque: 0.63 - 110 Nm;
Rated speed:
750, 1000, 1500, 3000 rpm at 50 Hz ;
1300, 1700, 2600, 5200 rpm at 87 Hz;
Maximum speed: up to 9000 rpm;
Control type: as part of a frequency-controlled electric drive;
Degree of protection: IP 54 (IP 55 on request);
Cooling method: IC 411 with self-ventilation, IC 416 axial fan;
Insulation class: F;
Standard sizes:
2-pole version:
MTS 63A /2, MTS 63B/2, MTS 71A/2, MTS 71B/2, MTS 80A/2, MTS 80B /2, MTS 90SA/2, MTS 90L/2, MTS 100L /2, MTS 112M /2, MTS 132SA /2, MTS 132SB/2;
MTS3 80A/2, MTS3 80B/2, MTS3 90SA/2, MTS3 90L/2, MTS3 100L/2, MTS3 112M/2, MTS3 132SA/2, MTS3 132SB/2.
4-pole version:
MTS3 80B/4, MTS3 90S/4, MTS3 90LA/4, MTS3 100LA/4, MTS3 100LB/4, MTS3 112M/4, MTS3 132S/4, MTS3 132MA/4;
MTS 63A/4, MTS 63B/4, MTS 71A/4, MTS 71B/4, MTS 80A/4, MTS 80B/4, MTS 90S/4, MTS 90LA/4, MTS 100LA/4, MTS 100LB/4, MTS 112M/4, MTS 132S/4, MTS 132MA /4.
6-pole version:
MTS 71 A/6, MTS 71 B/6, MTS 80 A/6, MTS 80 B/6, MTS 90 S/6, MTS 90 L/6, MTS 100 L/6, MTS 112 M/6, MTS 132 S/6, MTS 132 MA/6, MTS 132 MB/6;
MTS3 90 S/6, MTS3 90 L/6, MTS3 100 L/6, MTS3 112 M/6, MTS3 132 S/6, MTS3 132 MA/6, MTS3 132 MB/6.
Design features and advantages of Oemer Motori engines of the MTS - MTS3 series
- lightweight cast aluminum body with excellent finish;- complies with IEC standard engine design standards;
- standardized parts for easy replacement;
- modern design;
- Great possibilities of additional tooling and optional features.
Applications of Oemer Motori electric motors of the MTS - MTS3 series: food, chemical, pharmaceutical, woodworking, textile, machine building industries, lifting and transportation operations.
Specialized solutions based on Oemer Motori MTS - MTS3 engines for use in:
- screw dispensers;- filling and packaging equipment;
- sheet metal cutting lines;
- machine-building machines;
- conveyor conveyor belts;
- pumping and ventilation systems;
- separation equipment;
- lifting and transport equipment
- mobile overhead cranes.
If you have any questions about the selection of asynchronous electric motors of the Oemer Motori MTS - MTS3 series, please contact our engineers by phone.saluteh.
