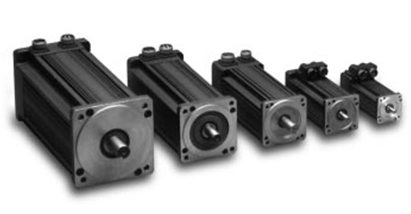

Series of servomotors GOLDLINE B/M, BE/ME, BH/MH they form a wide range of offers, a wide range of sizes, options and power solutions. The use of a special configuration with permanent magnets allows them to operate with low inertia. Excellent data on the accuracy and dynamics of the work.
Distinctive features of the GOLDLINE family series:
- The B series provides extremely low inertia values, ideal for operations with a rapid change of acceleration/deceleration processes, the BE variation uses encoders instead of a resolver for feedback;
- The M series are motors with average inertia values, which allows you to improve the performance of applications with corresponding loads and a stronger inertial dissonance, the ME variation uses encoders instead of a resolver for feedback;
- BH/MH have similar characteristics as the above motors, but use a higher voltage rating - 400/480 V.
Optionally, the complete set of the servo motor can be supplemented with safe brake blocks, a brush tachometer, enhanced protection of the housing from dust and water, planetary gearboxes, communication adapters, etc.
Technical characteristics of Kollmorgen GOLDLINE B/M, BE/ME, BH/MH servomotors
- Rated power: 0.54 - 16.2 kW;
- Rated torque: 0.52 - 149 Nm;
- Operating speed range: up to 7500 rpm;
- Supply voltage: 230 V (B/M, BE/ME), 400/480 V (BH/MH);
- Overall height: 70 - 190 mm;
- Mounting design: the flange is square;
- The degree of protection of the case: on request, IP65, IP67.
- Insulation class: H.
Standard sizes of Kollmorgen GOLDLINE B/M, BE/ME, BH/MH motors
Supply voltage 230 V
Engine Type | Moment, Nm | Max. moment, Nm | Power, kW | Speed, rpm |
B-102, BE-102, M-103, ME-103 | 0,84 | 2,41 | 0,54 | 7500 |
B-104, BE-104, M-105, ME-105 | 1,55 - 1,57 | 3,23 - 4,45 | 0,90 - 1,1 | 5600 - 7500 |
B-106, BE-106, M-107, ME-107 | 2,20 - 2,22 | 6,18 - 6,35 | 0,90 - 1,5 | 4200 - 7500 |
B-202, BE-202, M-203, ME-203 | 2,25 - 2,44 | 7,38 - 7,65 | 0,60 - 1,5 | 2500 - 6200 |
B-204, BE-204, M-205, ME-205 | 4,47 - 4,79 | 13,7 - 13,8 | 0,82 -2,8 | 1900 - 6200 |
B-206, BE-206, M-207, ME-207 | 6,24 - 6,51 | 19,5 - 20,5 | 0,97 - 3,7 | 1400 - 7000 |
B-402, BE-402, M-403, ME-403 | 6,50 - 6,80 | 19,8 | 0,97 - 2,8 | 1500 - 5000 |
B-404, BE-404, M-405, ME-405 | 13,0 - 13,3 | 35,9 - 37,5 | 2,0 - 5,4 | 1500 - 3700 |
B-406, BE-406, M-407, ME-407 | 17,0 - 18,6 | 48,3 - 49,5 | 2,9 - 7,2 | 1700 - 5000 |
B-602, BE-602, M-603, ME-603 | 17,4 - 17,6 | 49,5 - 51,2 | 3,3 - 4,6 | 2000 - 4000 |
B-604, BE-604, M-605, ME-605 | 30,1 - 31,2 | 86,4 - 87,7 | 6,0 - 8,6 | 2150 - 4300 |
B-606, BE-606, M-607, ME-607 | 42,0 - 44,8 | 123 - 132 | 6,6 - 11,2 | 1550 - 4150 |
B-802, BE-802, M-803, ME-803 | 40,7 - 42,0 | 129 - 130 | 6,1 - 10,1 | 1600 - 2750 |
B-804, BE-804, M-805, ME-805 | 78,6 | 230 - 232 | 10,8 - 15,7 | 1500 - 3000 |
B-806, BE-806, M-807, ME-807 | 109 - 111 | 323 - 362 | 9,1 - 16,2 | 900 - 3000 |
B-808-C | 149 | 422 | 15,1 | 1000 |
Voltage 400/480 V
Engine Type | Moment, Nm | Max. moment, Nm | Power, kW | Speed, rpm |
BH-122, MH-123 | 0,52 | 1,77 | 0,54 | 7500 |
BH-124, MH-125 | 1,00 | 3,10 | 1,11 | 7500 |
BH-126, MH-127 | 1,40 | 3,10 | 1,6 | 7500 |
BH-222, MH-223 | 1,5 | 3,5 | 1,9 | 7000 |
BH-224, MH-225 | 2,8 | 5,4 | 2,1 | 4600 |
BH-226, MH-227 | 4,1 | 7,7 - 10,5 | 2,2 - 2,9 | 3200 - 4900 |
BH-422, MH-423 | 4,3 | 12,2 | 2,8 | 4600 |
BH-424, MH-425 | 7,8 | 14,7 | 4,4 | 3700 |
BH-426, MH-427 | 11,4 - 11,7 | 24,5 - 27,4 | 5,7 - 7,9 | 3200 - 5000 |
BH-622, MH-623 | 10,8 - 11,0 | 24,7 - 29,5 | 3,3 - 5,9 | 2000 - 4000 |
BH-624, MH-625 | 18,2 - 18,9 | 34,5 - 41,4 | 6,2 - 9,8 | 2600 - 4500 |
BH-626, MH-627 | 26,1 - 27,0 | 50,2 - 61,1 | 6,5 - 14,1 | 1550 - 3700 |
BH-822, MH-823 | 25,6 - 25,6 | 53,6 - 60,2 | 6,3 - 11,4 | 1600 - 3000 |
BH-826, MH-827 | 69,0 | 120,1 | 15,3 | 1500 |
To buy Kollmorgen servomotors of the GOLDLINE B/M, BE/ME, BH/MH series, you can find out the price and more information about the product by contacting our specialists.
