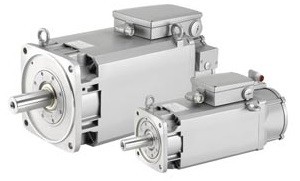

Universal modular servo motors SIMOTICS M-1PH8 a new generation from the company Siemens They are designed to solve all kinds of production tasks. The widest range of available performance values, high accuracy of work and acceleration dynamics, high-strength and reliable mechanical and electrical components, compact design and flexibility in connection and installation.
Typical applications of the range of electric motors in this series are: various kinds of machine tools, paper and printing production, winding and unwinding processes, manufacturing industry (mechanical operations on wood, glass, ceramics, stone), lifting equipment, presses, extruders, wire production, test benches, textile machines and many other applications for use.
The 1PH8 series is divided into two types of engine design:
- asynchronous, maximum precision of motion control and work efficiency
- synchronous. high torque values and smooth running
A wide range of options and accessories for all categories of servomotors, maximum adaptation to the conditions of the production environment.
Technical characteristics of Siemens 1PH8 servo motors
- Rated power: 2.8 - 1340 kW;
- Nominal torque: 13 - 12435 Nm;
- Operating speed range: 400 - 12,000 rpm;
- Maximum speed: up to 24,000 rpm;
- Operating voltage range: 400 - 480 V;
- Overall height: 80 - 355 mm;
- Mounting design: IN 1001, IN 2001, IN 3001;
- The degree of protection of the case: IP23, IP55, IP65;
- Degree of protection: forced ventilation, water cooling system, open ventilation system;
- Insulation class: H.
Standard sizes of asynchronous servomotors Siemens 1PH8
1PH808, 1PH810, 1PH813, 1PH816, 1PH818, 1PH822, 1PH828, 1PH835
You can buy Siemens 1PH8 series servomotors, find out the price and more information about the product by contacting our specialists.
