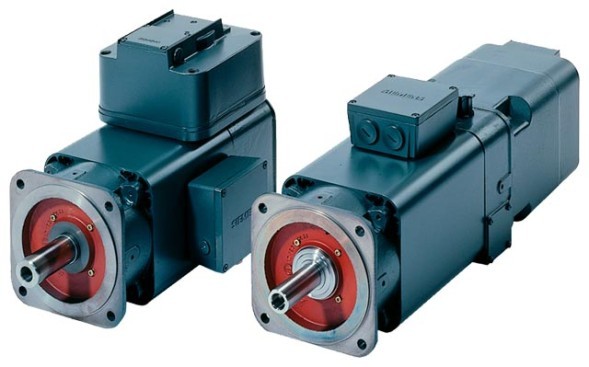

Asynchronous motors of the series 1PM6 designed specifically for direct coupling with spindle mechanisms, short-circuited rotor, 4-poles. The shaft structure is hollow inside, it is adapted to supply coolant for the tool used. It is characterized by the constancy of the nominal torque value even at zero speed, excellent acceleration and braking dynamics.
Reliable and durable servomotors are easy to maintain. A feedback sensor system is integrated to monitor the operating data of movement and position. Cooling by an independent fan.
They are used to equip machines for machining materials and products, for tools with direct drive and an internal cooling system.
Technical characteristics of Siemens 1PM6 servo motors
- Rated power: 3.7 - 39 kW;
- Nominal torque: 9 - 210 Nm;
- Operating speed range: 1500 - 4000 rpm;
- Maximum speed: up to 12,000 rpm;
- Operating voltage range: 400 V;
- Overall height: 100, 132 mm;
- Mounting design: IN 3001, IN 3011, IN 3031;
- The degree of protection of the case: IP55;
- Degree of protection: forced blowing (radial and axial fan);
- Insulation class: F.
Standard sizes of asynchronous servomotors Siemens 1PM6
1PM6 101, 1PM6 105, 1PM6 133, 1PM6 137, 1PM6 138
