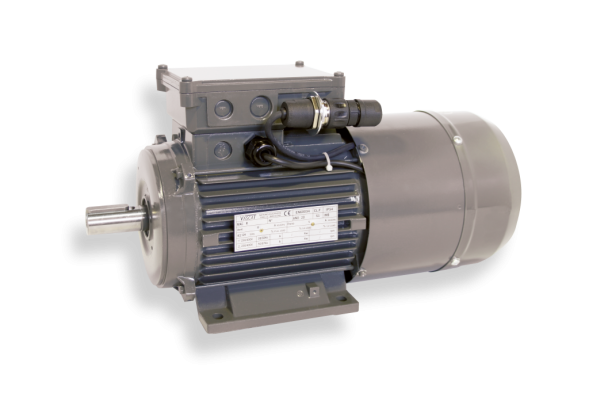

Vascat electric motors of the MAC R series They are presented in miniature standard sizes up to 112 mm in axis height, a special design for working with an inverter, and a short-circuited rotor design. The energy efficiency class of this line of models corresponds to IE2 (high), which provides rational use and savings of consumed energy resources. Comparatively higher torque values compared to analogues in the same dimensions, maintaining the nominal value at zero speed without overheating. It has high levels of accuracy and regulation. durable in use due to reinforced insulation.
Forced engine blowing system using an attached fan, the surface has ribs to enhance the effect. Dust- and splash-proof design. It is used most often for the following production and transportation applications: stackers, winders, unwinders, port cranes, packaging equipment, test installations and others.
Technical characteristics of Vascat MAC R AC motors:
- Rated power: 0.75 - 7.1 kW;
- Rated torque: 5 - 26.5 Nm;
- Operating speed range: 1420 - 2530 rpm;
- Maximum speed: up to 5000 rpm;
- Operating voltage range: 400 V (on request in the range from 200 to 690 V);
- Overall height: 80 - 112 mm;
- Mounting design: IN 1001, IN 3001;
- The degree of protection of the case: IP 54;
- Type of cooling: IC 416;
- Insulation class: F;
- Operating temperature range: up to + 40 ° C.
Nominal characteristics of standard sizes Vascat MAC R
| Engine Type | Power, kW | Moment, Nm | Nom. speed, rpm |
Current, A | Inertia, kg·m? |
| MAC-R-080.70 | 0,75 - 1,33 | 5 | 1420 - 2530 | 1,7 - 2,9 | 0,00182 |
| MAC-R-090.100 | 1,5 - 2,7 | 10,1 | 1420 - 2530 | 3,4 - 5,9 | 0,00383 |
| MAC-R-100.120 | 3 - 5,3 | 20,1 | 1425 - 2535 | 6,5 - 11,3 | 0,00633 |
| MAC-R-112.140 | 4 - 7,1 | 26,5 | 1430 - 2550 | 7,6 - 13,2 | 0,00935 |
You can buy Vascat MAC R series servomotors, find out the price and more information about the product by contacting our specialists.
