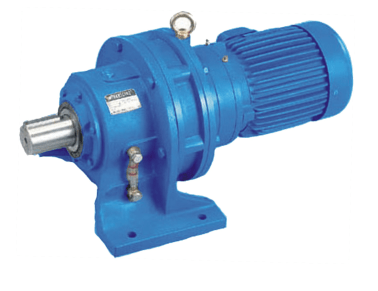

Cycloidal gear motor BWY33 BWY33-17-18.5- 6P

Cycloidal gear motors BWEY - this is a high quality of manufacture and ease of operation.

Models:

• BWY12 BWY15 BWY18 BWY22 BWY27 BWY33 BWY39 BWY45 BWY55 BWY65
• BWY0 BWY1 BWY2 BWY3 BWY4 BWY5 BWY6 BWY7 BWY8 BWY9
• BWY10 BWY11 BWY12 BWY13 BWY14 BWY15 BWY16 BWY17 BWY18 BWY19
• BWY120 BWY150 BWY180 BWY220 BWY270 BWY330 BWY390 BWY450 BWY550 BWY650

The coefficient of speeds:

9   11   17   23   29   35   43   59   71   87

Cycloid transmission (planetary-terminal) differs from others in that 67% of the tooth area of cycloidal discs is in contact at any given time. This allows the cycloid transmission to withstand the highest impact loads, which can be up to 500% of the rated torque of the gearbox.

Any other type of transmission has an overlap coefficient ten times less, as a result of which manufacturers of general industrial drives focus on an overload capacity of no more than 200% of the rated torque.

Features of the cycloidal gearbox

• High extraction coefficient and high level of efficiency
• If the cycloidal gearbox is equipped with a single-stage transmission, the exhaust coefficient can reach up to 1:87 and the efficiency will be more than 90%. If this transmission equipment is equipped with multi-stage control, the exhaust coefficient will be higher.
• Compact structure and small size.
• The cycloidal gearbox is equipped with the principle of planetary control, the input and output shafts are located on the same axis, so the gearbox has a small size.
• Smooth running and low noise.
• Reliable performance and long service life.
• The main components of the cycloidal gearbox are made of high-carbon chrome-plated steel material and these products have a high level of strength. Moreover, the friction of the second kind of some gear contacts makes the gearbox durable.
• The cycloidal gearbox has a rational design and is easy to maintain.
