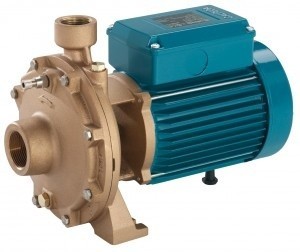

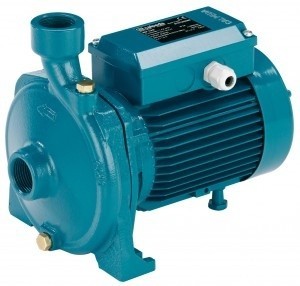

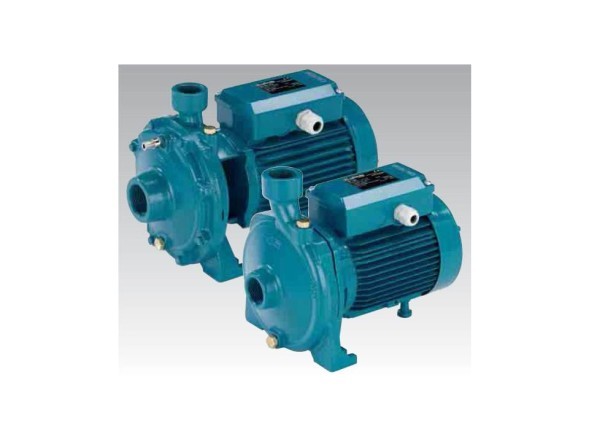

Calpeda NMD Centrifugal 2-stage Block Pump

Horizontal single(NM) or two-stage (NMD) centrifugal block pumps. Built-in electric motor with a special shaft. Centrifugal block pumps of the NM and NMD series are used for pumping clean or slightly contaminated liquids.

Technical specifications:

• Maximum pressure: 10 bar (NM), 16 bar (NMD)
• Temperature: -10°C to +90°C
• Flow rate up to 70 m3/h
• Head up to 115 m.
• Nozzles from 1" to 2"
• Engine speed: 2900 min-1
