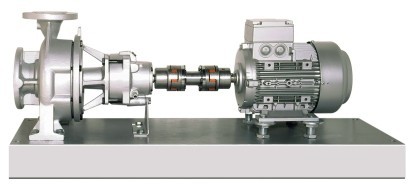

Single-channel centrifugal pumps of the series ALLHEAT NTWH from the company Allweiler they have a practical modular design and are designed for mounting the drive unit on a base plate, DIN EN 733 standard. The model range is represented by a wide range of dimensions for selecting the optimal option. Single-stage design, the outlet pipe is directed radially upwards, the suction one is coaxial. Mechanical mechanical seal made of silicon carbide or carbon. On request, they can be equipped with a coupling with a spacer. Three-phase electric motors of closed design and surface cooling, mounting on paws, insulation of class F. are used as a drive.
Pumping liquids: hot solutions, oils, synthetic and organic in nature.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: heat supply, food and chemical industry, construction, woodworking and others.
Technical characteristics of Allweiler centrifugal pumps of the ALLHEAT NTWH series
- Volume consumption: up to 1250 m3/hour;
- Discharge height: up to 100 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 200 mm;
- Diameter of the pressure nozzle: 25 - 150 mm;
- Liquid temperature: up to 183 /350 °C;
- Installation: dry, horizontal, on a base plate.
Overall standard sizes of Allweiler ALLHEAT NTWH pumps
NTWH 25-160/11, NTWH 25-200/01, NTWH 32-160/01, NTWH 32-200/01, NTWH 40-160/01, NTWH 40-200/01, NTWH 40-250/01, NTWH 50-160/01, NTWH 50-200/01, NTWH 50-250/01, NTWH 65-160/01, NTWH 65-200/02, NTWH 80-160/01, NTWH 100-160/01, NTWH 65-250/01, NTWH 65-315/01, NTWH 65-400/01, NTWH 80-200/02, NTWH 80-250/01, NTWH 80-315/01, NTWH 100-200/01, NTWH 100-250/01, NTWH 100-315/01, NTWH 125-200/01, NTWH 125-250/01, NTWH 150-200/01
You can buy Allweiler centrifugal pumps of the ALLHEAT NTWH series, find out the price and more information about the products by contacting our specialists.
