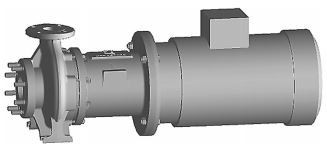

Single-channel centrifugal pumps of the series ALLMAG CMA from the company Allweiler they are equipped with a magnetic coupling for torque transmission, thus the conditions for ensuring tightness and complete exclusion of leaks of the pumped substances are fulfilled. The ideal solution for compliance with environmental regulations when working with hazardous substances. Single-stage design, the outlet pipe is directed radially upwards, the suction is coaxial, block connection through a flange or lantern, configuration according to DIN EN ISO 2858 standard. Three-phase electric motors of closed design with a short-circuited rotor type are used for the drive.
Pumping liquids: toxic, explosive, volatile liquids, desalinated water.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: chemical industry, various manufacturing processes, marine applications (tankers, desalination plants).
Technical characteristics of Allweiler centrifugal pumps of the ALLMAG CMA series
- Volume consumption: up to 80 m3/hour;
- Discharge height: up to 55 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 80 mm;
- Diameter of the pressure nozzle: 25 - 50 mm;
- Liquid temperature: up to 150 °C;
- Installation: dry, horizontal /vertical, block.
Overall standard sizes of Allweiler ALLMAG CMA pumps
CMA 25-160/01, CMA 25-200/01, CMA 32-160/01, CMA 32-200/01, CMA 40-160/01, CMA 40-200/01, CMA 50-160/01, CMA 50-200/01
You can buy Allweiler centrifugal pumps of the ALLMAG CMA series, find out the price and more information about the products by contacting our specialists.
