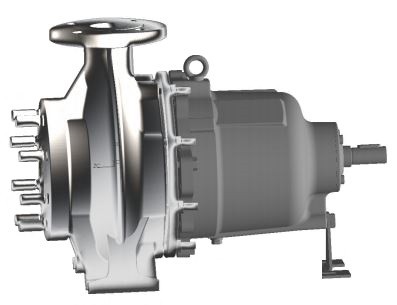

Single-channel centrifugal pumps of the series ALLMAG CMAL from the company Allweiler they are equipped with a magnetic coupling for torque transmission, thus, the conditions for ensuring tightness and complete exclusion of leaks of the pumped substances are fulfilled. The ideal solution for compliance with environmental regulations when working with hazardous substances. Single-stage design, the outlet pipe is directed radially upwards, the suction is coaxial, the entire drive unit is mounted on a base plate, configuration according to DIN EN ISO 2858 standard. On request, they can be equipped with a coupling with a spacer. Three-phase electric motors of closed design with a short-circuited rotor type are used for the drive.
Pumping liquids: toxic, explosive, volatile liquids, desalinated water.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: chemical industry, various manufacturing processes, marine applications (tankers, desalination plants), and others.
Technical characteristics of Allweiler centrifugal pumps of the ALLMAG CMAL series
- Volume consumption: up to 80 m3/hour;
- Discharge height: up to 55 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 80 mm;
- Diameter of the pressure nozzle: 25 - 50 mm;
- Liquid temperature: up to 150 °C;
- Installation: dry, horizontal, on a base plate.
Overall standard sizes of Allweiler ALLMAG CMAL pumps
CMAL 25-160/01, CMAL 25-200/01, CMAL 32-160/01, CMAL 32-200/01, CMAL 40-160/01, CMAL 40-200/01, CMAL 50-160/01, CMAL 50-200/01
You can buy Allweiler centrifugal pumps of the ALLMAG CMAL series, find out the price and more information about the products by contacting our specialists.
