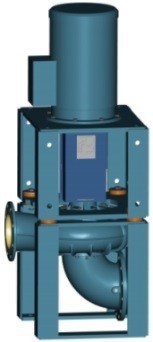

Special series of centrifugal pumps ALLMARINE MI productions Allweiler for work on ships and offshore platforms. These are reliable and highly efficient units for long-term use and optimized technology, high corrosion resistance. The nozzles are arranged linearly, the design is compact, practical modular design. They are completely maintenance-free, have a low cavitation margin (3%) and are generally very economical to operate. Block connection of the drive with sealing and vertical orientation, easy installation, coupling with spacer. A wide range of standard sizes for the selection of necessary parameters.
Pumping liquids: fresh, sea water, condensate, oils.
Areas of application: for marine applications (ship-wide, bilge, ballast, fire, for cooling).
Technical characteristics of Allweiler centrifugal pumps of the ALLMARINE MI series
- Volume consumption: up to 1800 m3/hour;
- Discharge height: up to 65 m;
- Nominal pressure (PN): up to 10 bar;
- Liquid temperature: up to 40 °C (sea), up to 100 °C (fresh);
- Diameter of the suction pipe: 125 - 400 mm;
- Diameter of the pressure nozzle: 65 - 350 mm;
- Installation: dry, vertical, built-in.
Overall standard sizes of Allweiler MI pumps
MI 65-250/01, MI 80-250/01, MI 100-250/01, MI 125-250/01, MI 80-315/01, MI 100-315/01, MI 150-250/01, MI 200-250/01, MI 125-315/01, MI 150-315/01, MI 200-315/01, MI 250-315/01, MI 350-315/01, MI 200-500/02, MI 250-500/01
You can buy Allweiler centrifugal pumps of the ALLMARINE MI series, find out the price and more information about the products by contacting our specialists.
