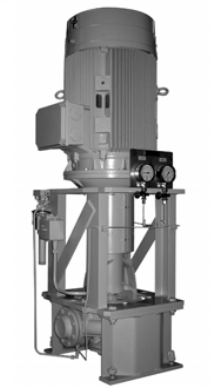

Special series of centrifugal pumps ALLMARINE NAM-F productions Allweiler for work on ships and offshore platforms for fire protection measures, design according to DIN EN 733 standard. Single-channel, single-stage, outlet pipe directed radially upwards, suction - coaxial, block connection of the drive with a seal and vertical orientation. Easy installation, the kit includes a coupling with a spacer. Three-phase asynchronous models with a short-circuited rotor type, IP54 class dust and water protection, IM 3011 mounting version are used as motors.
Pumping liquids: fresh and sea water.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: for marine applications (fire pump).
Technical characteristics of Allweiler centrifugal pumps of the ALLMARINE NAM-F series
- Volume consumption: up to 440 m?/hour;
- Discharge height: up to 85 - 145 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 80 - 150 mm;
- Diameter of the pressure nozzle: 65 - 125 mm;
- Liquid temperature: up to 90 °C.
- Installation: dry, vertical, block.
Overall standard sizes of Allweiler ALLMARINE NAM-F pumps
NAM F 65-250/01, NAM F 80-250/01, NAM F 65-315/11, NAM F 80-315/11, NAM F 100-250/11, NAM F 100-250/11, NAM F 100-315/11, NAM F 125-250/11, NAM F 125-315/11
You can buy Allweiler centrifugal pumps of the ALLMARINE NAM-F series, find out the price and more information about the products by contacting our specialists.
