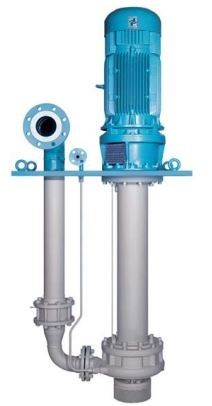

Submersible centrifugal pumps of the series ALLUB NSSV from the company Allweiler They are used to supply lubricants and anti-corrosion materials to various mechanisms (compressors, turbines, generators, transmission units) in various industries. One- and two-stage versions, the entire drive unit is attached to the base plate, the motor is mounted vertically, configuration according to DIN EN 733 standard. Standard three-phase asynchronous motors (IEC or NEMA) are used for the drive, mounting version IM 3011. A large range of models for optimal selection of parameters.
Pumping liquids: lubricating, hydraulic oils.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: turbines, mechanical transmissions, compressors and others.
Technical characteristics of Allweiler centrifugal pumps of the ALLUB NSSV series
- Volume consumption: up to 550 m3/hour (over on request);
- Discharge height: up to 150 m;
- Nominal pressure (PN): up to 16 bar;
- Liquid temperature: up to 120 °C;
- Installation: in the tank, vertical.
Overall standard sizes of Allweiler ALLUB NSSV pumps
NSSV 25-160/11, NSSV 25-200/01, NSSV 2/25-200/01, NSSV 32-160/01, NSSV 32-200/01, NSSV 2/32-200/01, NSSV 40-160/01, NSSV 40-200/01, NSSV 40-250/01, NSSV 50-160/01, NSSV 50-200/01, NSSV 50-250/01, NSSV 2/50-250/01, NSSV 65-200/02, NSSV 65-250/01, NSSV 65-315/01, NSSV 80-200/02, NSSV 80-250/01, NSSV 80-315/01, NSSV 100-200/01, NSSV 100-250/01, NSSV 100-315/01, NSSV 125-200/01, NSSV 125-250/01, NSSV 150-200/01
You can buy Allweiler centrifugal pumps of the ALLUB NSSV series, find out the price and more information about the products by contacting our specialists.
