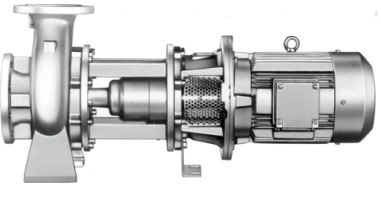

Single-channel centrifugal pumps of the series NBT from the company Allweiler they have a practical modular design and are designed for block mounting of the drive unit (reinforced connection through a flange or lantern), DIN EN 733 standard.The ideal solution for pumping high-temperature oils. The model range is represented by a wide range of dimensions to select the optimal option. The design is one- or two-stage, mechanical shaft seal, the outlet pipe is directed radially upwards, the suction is coaxial. Three-phase motors with a short-circuited rotor are used as a drive in the standard.
Pumping liquids: oils.
Areas of application: chemical, petroleum industry, pharmaceuticals, food industry, construction, woodworking, textile industry, etc.
Technical Characteristics of Allweiler NBT series centrifugal pumps
- Volume consumption: up to 280 m3/hour;
- Discharge height: up to 145 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 125 mm;
- Diameter of the pressure nozzle: 25 - 100 mm;
- Liquid temperature: up to 350 °C;
- Installation: horizontal/vertical, block.
Overall standard sizes of Allweiler NBT pumps
NBT 25-160/11, NBT 25-200/01, NBT 2/25-200/01, NBT 32-160/01, NBT 32-200/01, NBT 2/32-200/01, NBT 40-160/01, NBT 40-200/01, NBT 40-250/01, NBT 2/40-250/01, NBT 50-160/01, NBT 50-200/01, NBT 50-250/01, NBT 2/50-250/01, NBT 65-160/01, NBT 65-200/02, NBT 80-160/01, NBT 100-160/01
You can buy Allweiler NBT series centrifugal pumps, find out the price and more information about the products by contacting our specialists.
