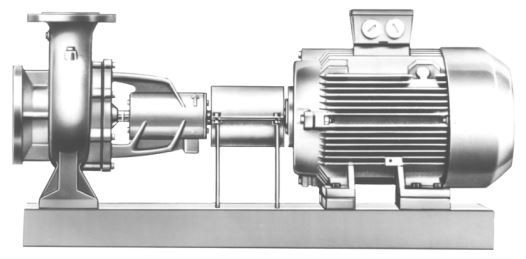

Single-channel centrifugal pumps of the series NT from the company Allweiler They have a practical modular design and are designed for mounting the drive unit to the base plate. The model range is represented by a wide range of dimensions to select the optimal option. The design is one- or two-stage, lifelong lubrication of bearings, mechanical shaft seal (materials to choose from), the outlet pipe is directed radially upwards, the suction is coaxial. Classification according to the requirements of Atex - II 2 G c b Tx (temperature class on request). On request, it can be equipped with a coupling with a spacer. As a drive, three-phase motors with a short-circuited rotor, closed design (IP55), insulation F, on the paws are used in the standard.
Pumping liquids: water (clean, marine, industrial, condensate), salt and alkaline solutions, oils.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water treatment, air conditioning, heating systems, desalination plants, cooling, spraying, swimming pools, dust collectors and other installations.
Technical Characteristics of Allweiler NT series centrifugal pumps
- Volume consumption: up to 2300 m3/hour;
- Discharge height: up to 145 m;
- Nominal pressure (PN): up to 10 /16 bar;
- Diameter of the suction pipe: 25 - 300 mm;
- Diameter of the pressure pipe: 25 - 250 mm;
- Liquid temperature: up to 140 °C.
- Installation: dry, horizontal, on a base plate.
Overall standard sizes of Allweiler NT pumps
NT 20-160/01, NT 25-160/01, NT 25-200/01, NT 2/25-200/01, NT 32-160/01, NT 32-200/01, NT 2/32-200/01, NT 40-160/01, NT 40-200/01, NT 40-250/01, NT 2/40-250/01, NT 50-160/01, NT 50-200/01, NT 50-250/01, NT 2/50-250/01, NT 65-160/01, NT 65-200/02, NT 80-160/01, NT 100-160/01, NT 65-250/01, NT 65-315/01, NT 65-400/01, NT 80-200/02, NT 80-250/01, NT 80-315/01, NT 100-200/01, NT 100-250/01, NT 100-315/01, NT 125-200/01, NT 125-250/01, NT 150-200/01, NT 80-400/02, NT 100-400/02, NT 125-315/01, NT 125-400/02, NT 150-250/02, NT 150-315/01, NT 150-400/02, NT 200-250/02, NT 200-315/01, NT 200-400/01, NT 250-315/01, NT 250-400/01, NT 300-315/03, NT 300-400/03, NT 300-315/03, NT 300-400/03
You can buy Allweiler NT series centrifugal pumps by contacting our specialists to find out the price and more information about the products.
