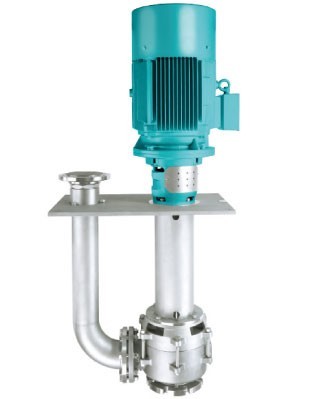

Submersible centrifugal pumps of the series CTOL, LTU productions EDUR they are used for installation directly in tanks with pumped liquid. A compact solution in conditions of lack of space for placing dry installation units, if it is impossible to install them closely to ensure a good inflow. Such a constructive solution eliminates the possibility of ducks, which is especially important when working with dangerous or harmful substances. They are silent, easy to install and maintain.
Single-channel design type with single-stage (CTOL) and multi-stage (LTU) structure, modular architecture, mechanical seal is not required. Vertical orientation of the installation, three-phase AC electric motors with a high class of protection against dust and moisture are used for the drive in the standard version, individual settings are available on request.
Pumping liquids: water, oils, solutions, etc.
Limitations: absence of abrasive inclusions, contact with chemically aggressive agents.
Areas of application: water supply, irrigation, supply of lubricants and other technological processes.
Technical characteristics of EDUR multiphase centrifugal pumps of CTOL, LTU series
- Volume consumption: up to 350 m3/hour;
- Nominal pressure (PN): up to 10 bar (CTOL), up to 25 bar (LTU);
- Discharge height: up to 50 m;
- Liquid temperature: от -25 °C до 90 °C (CTOL), от -40 °C до 120 °C (LTU);
- Viscosity of the liquid: up to 115 mm2/sec;
- Installation: vertical.
You can buy EDUR submersible pumps of CTOL, LTU series, find out the price and more information about the products by contacting our specialists.
