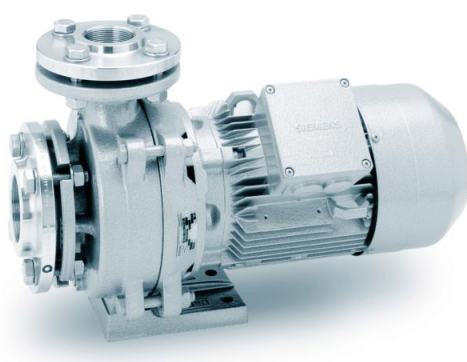

Single-stage centrifugal pumps with high torque series FB /FBL from the company EDUR They are designed for pumping liquids including contaminants (solid particles, fibers) of various nature in a percentage ratio of no more than 15% of the total volume passing through the gate, as well as with a moderate concentration of gas impurities. Inclusions may have abrasive properties, such as metal chips, lime, oils with solid elements, etc. They are not susceptible to cavitation processes. Single channel, practical and compact block design. The suction nozzle is located coaxially to the motor unit, falling radially upwards.
CBF pumps are very reliable and easy to maintain, shaft sealing with a mechanical seal (single or double-sided in the FUBL version), optional extensions are also available. Three-phase AC electric motors with a high class of protection against dust and moisture are used as standard for the drive.
Pumping liquids: waste water, refrigerants, abrasive oils, etc.
Limitations: contact with chemically aggressive agents.
Areas of application: water purification, processing plants, processing industry, environmental engineering and other technological processes and industries.
Technical characteristics of EDUR centrifugal pumps of the FUB/FUBL series
- Volume consumption: up to 350 m3/hour;
- Discharge height: up to 400 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 150 mm;
- Diameter of the pressure nozzle: 32 - 125 mm;
- Viscosity of the liquid: up to 80 mm2/sec;
- Maximum sizes of inclusions: 30 - 80 mm ;
- Liquid temperature: -40 to 140 °C.
- Installation: horizontal /vertical.
Overall standard sizes of EDUR pumps of the FUB /FUBL series
FUB 300, FUBL 300, FUBL 500, FUBL 700, NFUBL 600, NFUBL700, NFUBL800
You can buy EDUR single-stage centrifugal pumps of the FUB /FUBL series, find out the price and more information about the products by contacting our specialists.
