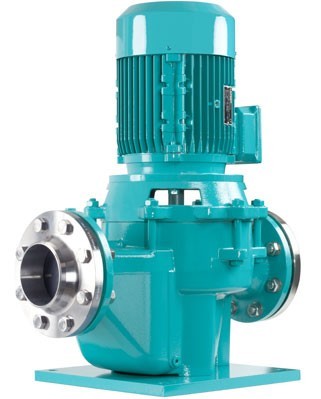

Centrifugal pumps of the series Or from the company EDUR They have a compact built-in design with vertical orientation of the motor part, an excellent alternative for block design. Versatile in application, they are used for pumping low-density liquids in many industries. The configuration is single-stage, the suction and falling nozzles are located on the same line. For this line, there are many settings for sealing the drive part (mechanical seal reinforcement, magnetic coupling), for working with slightly polluted streams, for special operating conditions.
Cast iron, bronze and stainless steel are used as body and impeller materials in various combinations depending on the selected version.
In general, these are very reliable and easy-to-maintain pumps, with an optimized design for energy-efficient operation and designed for a long service life. Three-phase AC electric motors with a high class of protection against dust and moisture are used as standard for the drive.
Pumping liquids: water, solutions, oils.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water purification, cooling systems, marine applications, plastic industry, mechanical engineering and other industries, technological processes.
Technical characteristics of EDUR LUBE series centrifugal pumps
- Volume consumption: up to 220 m3/hour;
- Discharge height: up to 90 m;
- Nominal pressure (PN): up to 16 bar;
- Viscosity of the liquid: up to 115 mm2/sec;
- Liquid temperature: -40 to 140 °C.
- Installation: vertical .
You can buy linear centrifugal pumps EDUR of the LUB series, find out the price and more information about the products by contacting our specialists.
