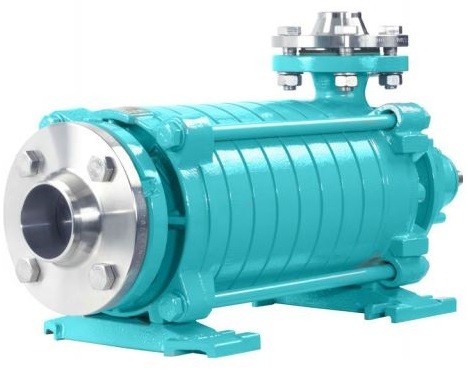

Centrifugal pumps for pumping reduced gas series NHE /LBE productions EDUR They have been developed for safe operation with this type of fuel products, and they are certified according to ATEX standards. High performance and reliability in application, optimized flow processing technology helps to use energy efficiently and significantly reduces costs for this production process. Suitable for systems with a low NPSH value (minimum suction height).
A single-channel type of construction with a multi-stage structure, a compact block design or a version with mounting on a base plate is offered. The shaft has a single- or double-sided mechanical seal, and a magnetic coupling is also available to completely separate the nodes. Horizontal orientation of the installation, three-phase AC electric motors with a high class of protection against dust and moisture are used for the drive in the standard version, individual settings are available on request.
Pumping liquids: liquefied gas.
Areas of application: unloading, transportation, fuel supply.
Technical characteristics of multiphase centrifugal pumps EDUR EB series
- Volume consumption: up to 340 m3/hour;
- Nominal pressure (PN): up to 40 bar;
- Discharge height: up to 400 m;
- Liquid temperature: -40 °C to 110 °C;
- Viscosity of the liquid: up to 115 mm2/sec;
- Installation: horizontal, block (LBE) or on a base plate (NHE).
You can buy EDUR liquefied gas pumps of the NHE /LBE series, find out the price and more information about the products by contacting our specialists.
