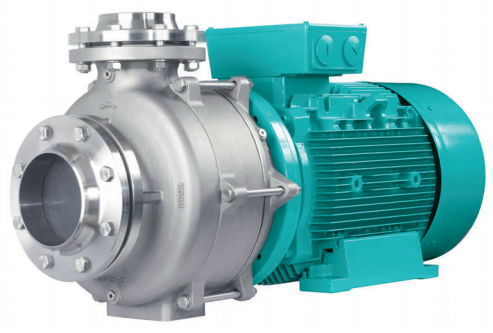

Compact centrifugal pumps of the series NUB from the company EDUR They are universal in application and are used for pumping liquids of low density in many industry directions. For this line, there are many settings for sealing the drive part (mechanical seal reinforcement, magnetic coupling), for working with slightly polluted streams, for special operating conditions. Cast iron, bronze and stainless steel are used as body and impeller materials in various combinations depending on the selected version. The suction nozzle is located coaxially to the motor unit, falling radially upwards.
In general, these are very reliable and easy-to-maintain pumps, with an optimized design for energy-efficient operation and designed for a long service life. Three-phase AC electric motors with a high class of protection against dust and moisture are used as standard for the drive.
Pumping liquids: water, solutions, oils.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water purification, cooling systems, marine applications, plastic industry, mechanical engineering and other industries, technological processes.
Technical characteristics of EDUR centrifugal pumps of the NUB series
- Volume consumption: up to 600 m3/hour;
- Discharge height: up to 90 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 40 - 150 mm;
- Diameter of the pressure nozzle: 32 - 125 mm;
- Viscosity of the liquid: up to 115 mm2/sec;
- Liquid temperature: -40 to 140 °C;
- Installation: horizontal /vertical, flanged (NUBF version).
Overall standard sizes of EDUR pumps of the NUB series
3000 rpm drive: NUB 300 A096, NUB 300 A112, NUB 300 A117, NUB 300 A112L, NUB 300 A120L, NUB 300 A142L, NUB 300 A150L, NUB 300 B112, NUB 300 B120L, NUB 300 B140L, NUB 300 B150L, NUB 32-160 C115, NUB 32-160 C120L, NUB 32-160 C140L, NUB 32-160 C150L, NUB 500 C150L, NUB 500 C170L, NUB 500 D130, NUB 500 D135, NUB 500 D150, NUB 500 D150L, NUB 500 Z160L, NUB 600 C160L, NUB 600 C170L, NUB 600 C180L, NUB 600 D150L, NUB 600 D168L, NUBL 600 E120, NUB 600 E135, NUB 600 E140, NUB 600 E150, NUB 600 E160, NUB 600 E168, NUB 600 E130L, NUB 600 E140L, NUB 600 E150L, NUB 600 E162L, NUB 600 E168L, NUBL 600 F105, NUBL 600 F110, NUB 600 F120, NUB 600 F128, NUB 600 F138, NUB 700 E130L, NUB 700 E145L, NUB 700 E158L, NUB 700 G128, NUB 700 G136, NUB 700 G148, NUB 700 G148L, NUB 700 G155L, NUB 700 G165L, NUB 700 G180L, NUB 700 G155V, NUB 700 G162V, NUB 700 G175V, NUBL 700 G180V, NUB 700 M140, NUB 700 M150, NUBL 700 M160, NUBL 700 M170, NUBL 700 M180, NUBL 700 M190, NUBL 700 P138, NUBL 700 P150.
1500 rpm drive: NNUB 700 E130L, NNUB 700 E140L, NNUB 700 E150L, NNUB 700 E160L, NNUB 700 G150L, NNUB 700 G160L, NNUBLL 700 G170L, NNUBLL 700 G180L, NNUB 700 G150V, NNUB 700 G170V, NNUBLL 700 G180V, NNUB 700 M170, NNUB 700 M180, NNUB 700 M190, NNUB 80-160 E130L, NNUB 80-160 E140L, NNUB 80-160 E150L, NNUB 80-160 E160L, NNUB 80-160 G150L, NNUB 80-160 G160L, NNUBL 80-160 G170L, NNUBL 80-160 G180L, NNUB 80-160 G150V, NNUB 80-160 G170V, NNUBL 80-160 G180V, NUBL 800 N220, NUBL 800 N232, NUBL 800 N250, NUBL 800 N265, NUBL 800 N275, NUBL 800 N300.
