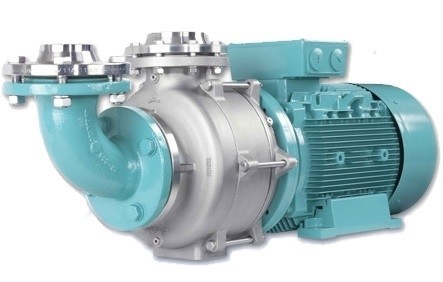

Self-priming centrifugal pumps of the series SUB productions EDUR They are designed for pumping liquids in various industry directions, including slightly polluted streams. Due to the design features, they are also able to work with gaseous media without cavitation effect. Low feed rate, practical modular construction. One channel, suction and falling nozzles are located radially upwards relative to the axis of rotation.
Horizontal orientation of the pumping unit, compact block mounting. Three-phase AC electric motors with a high class of protection against dust and moisture are used as a drive in the standard version, individual settings are available on request.
Pumping liquids: water, solutions, oils, etc.
Limitations: absence of abrasive inclusions, contact with chemically aggressive agents.
Areas of application: water purification, irrigation, boiler power, cooling systems, washing plants, filtration, marine applications and other technological processes and industries.
Technical characteristics of EDUR centrifugal pumps of the SUB series
- Volume consumption: up to 175 m3/hour;
- Discharge height: up to 45 m;
- Nominal pressure (PN): up to 10 bar;
- Viscosity of the liquid: up to 30 mm2/sec;
- Liquid temperature: -40 to 90 °C;
- Installation: horizontal, blocky.
You can buy self-priming centrifugal pumps of the EDUR SUB series, find out the price and more information about the products by contacting our specialists.
