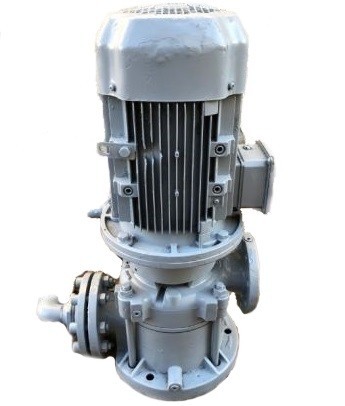

Multistage high pressure centrifugal pumps of the series VBU /VBE productions EDUR They are designed for pumping liquids in various industry directions, including slightly polluted streams. One channel, suction and falling nozzles are located in parallel, the motor is built on top, vertical orientation of the installation. Three-phase AC electric motors with a high class of protection against dust and moisture are used as a drive in the standard version, individual settings are available on request.
Various materials and their combinations for component parts (housing, impeller) are available to choose from: cast iron, bronze, stainless steel. The shaft is made of various grades of stainless steel, sealed with a mechanical seal (single and double-sided).
Pumping liquids: water, solutions, oils, etc.
Limitations: absence of abrasive inclusions, contact with chemically aggressive agents.
Areas of application: water purification, irrigation, boiler power, cooling systems, washing plants, filtration, marine applications and other technological processes and industries.
Technical characteristics of EDUR centrifugal pumps of the VBU/VBE series
- Volume consumption: up to 64 m3/hour;
- Discharge height: up to 350 m;
- Nominal pressure (PN): up to 25 bar (VBE up to 30 bar);
- Diameter of the suction pipe: 65 - 80 mm;
- Diameter of the pressure nozzle: 40 - 65 mm;
- Viscosity of the liquid: up to 115 mm2/sec;
- Liquid temperature: -40 to 140 °C.
- Installation: vertical.
Overall standard sizes of EDUR pumps of the VBU /VBE series
VBU 401 A142L, VBU 402 A142L, VBU 403 A142L, VBU 404 A142L, VBU 405 A142L, VBU 406 A142L, VBU 407 A142L, VBU 408 A142L, VBU 409 A142L, VBU 410 A142L, VBU 401 B150L, VBU 402 B150L, VBU 403 B150L, VBU 404 B150L, VBU 405 B150L, VBU 406 B150L, VBU 407 B150L, VBU 408 B150L, VBU 401 C120L, VBU 402 C120L, VBU 403 C120L, VBU 404 C120L, VBU 405 C120L, VBU 406 C120L, VBU 407 C120L, VBU 408 C120L, VBU 409 C120L, VBU 601 C160L, VBU 602 C160L, VBU 603 C160L, VBU 604 C160L, VBU 605 C160L, VBU 606 C160L, VBU 601 D150L, VBU 602 D150L, VBU 603 D150L, VBU 604 D150L, VBU 605 D150L, VBU 606 D150L, VBU 601 D160L, VBU 602 D160L, VBU 603 D160L, VBU 604 D160L, VBU 601 E150L, VBU 602 E150L, VBU 603 E150L, VBU 604 E150L, VBU 601 E162L, VBU 602 E162L, VBU 603 E162L, VBU 601 F170L, VBU 602 F170L, VBU 603 F170L
VBE 401 A142L, VBE 402 A142L, VBE 403 A142L, VBE 404 A142L, VBE 405 A142L, VBE 406 A142L, VBE 407 A142L, VBE 408 A142L, VBE 409 A142L, VBE 410 A142L, VBE 401 B150L, VBE 402 B150L, VBE 403 B150L, VBE 404 B150L, VBE 405 B150L, VBE 406 B150L, VBE 407 B150L, VBE 408 B150L, VBE 401 C120L, VBE 402 C120L, VBE 403 C120L, VBE 404 C120L, VBE 405 C120L, VBE 406 C120L, VBE 407 C120L, VBE 408 C120L, VBE 409 C120L, VBE 601 C160L, VBE 602 C160L, VBE 603 C160L, VBE 604 C160L, VBE 605 C160L, VBE 606 C160L, VBE 601 D150L, VBE 602 D150L, VBE 603 D150L, VBE 604 D150L, VBE 605 D150L, VBE 606 D150L, VBE 601 D160L, VBE 602 D160L, VBE 603 D160L, VBE 604 D160L, VBE 601 E150L, VBE 602 E150L, VBE 603 E150L, VBE 604 E150L, VBE 601 E162L, VBE 602 E162L, VBE 603 E162L, VBE 601 F170L, VBE 602 F170L, VBE 603 F170L
