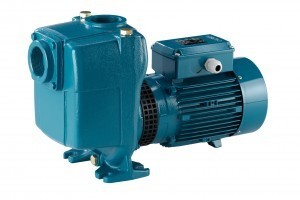

Sivag Pumpen A Centrifugal Pumps

Self-priming centrifugal pumps Sivag Pumps series A for pumping clean and slightly contaminated liquids with solid particles up to 15 mm. The pumps are made of cast iron, also of bronze, shaft sealing is ensured by mechanical sealing, all materials are adapted to the operating conditions. Due to the movement of the wheels, a low pressure area is created. The design provides a fuse that provides automatic suction at each start. Pumps are used for irrigation and irrigation for industrial purposes. A 2-pole asynchronous motor with efficiency class IE2 is used for the drive.

Technical characteristics of centrifugal pumps A:

• Maximum nominal pressure: 6 bar
• Temperature: from -10° C to + 60 ° C
• Volume consumption: up to 67 m3/hour
• Nominal discharge height: up to 35 m
• Engine speed: 2900 min-1

Standard sizes of centrifugal pumps A:

A 40-110B/A, B-A 40-110B/A, A 40-110A/A, B-A 40-110A/A, AM 40-110B/A, B-AM 40-110B/A, AM 40-110A/A, B-AM 40-110A/A, A 50-125CE, B-A 50-125CE, AM 50-125CE, B-AM 50-125CE, AM 50-125BE, B-AM 50-125BE, AM 50-125AE, B-AM 50-125AE, A 50-125BE, B-A 50-125BE, A 50-125AE, B-A 50-125AE , A 65-150C/B, B-A 65-150C/A, A 65-150B/B, B-A 65-150B/A, A 65-150A/B, B-A 65-150A/A, , A 80-170B/A, B-A 80-170B/A, A 80-170A/A, B-A 80-170A/A.
