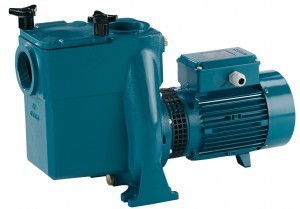

NMP Centrifugal Pump

Self-priming centrifugal pumps Sivag Pumps series NMP with a filter, they are designed for water circulation in filtration systems. The pumps are made of cast iron as well as bronze. The sealing of the shaft is ensured by a mechanical seal. A 2-pole asynchronous motor with efficiency class IE3 and protection class IP 54 is used for the drive.

Technical characteristics of NMP centrifugal pumps:

• Maximum nominal pressure: 6 bar
• Temperature: up to + 60 ° C
• Volume consumption: up to 110 m3/hour
• Nominal discharge height: up to 37 m
• Engine speed: 2900 min-1

Standard sizes of NMP centrifugal pumps:

B-NMP 32/12FE, B-NMP 32/12DE, B-NMP 32/12A/A, B-NMP 32/12S/A, B-NMP 50/12H/A, B-NMP 50/12G/A, B-NMP 50/12F/B, B-NMP 50/12D/A, B-NMP 65/16F/B, B-NMP 65/16E/A, B-NMP 65/16D/A, B-NMP 65/16C/B, B-NMP 65/16A/B, B-NMPM 32/12FE, B-NMPM 32/12DE, B-NMPM 32/12AE, B-NMPM 32/12SE, B-NMPM 50/12HE, B-NMPM 50/12GE.
