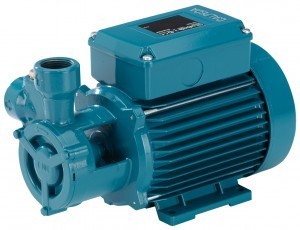

Centrifugal pumps Sivag Pumpen T , TR

Peripheral pumps Sivag Pumps series T, TR in block design, they have compact dimensions and additional splash protection. Pumps of the T, TR series are used for pumping clean, non-explosive liquids without abrasive or solid components. The structure is made of cast iron, sealing is provided by a mechanical seal. Due to their small size, the pumps are suitable for use in equipment and cooling technology. A 2-pole asynchronous motor with efficiency class IE3 is used for the drive.

Technical characteristics of peripheral pumps T, TR:

• Temperature: from -10° C to + 90 ° C
• Volume consumption: up to 6 m3/hour
• Nominal discharge height: up to 170 m
• Engine speed: 2900 min-1

Standard sizes of peripheral pumps T, TR:

T 70 /B, B-T 70/B, TP 78/A, B-TP 78/A, T 61E,B - T 61E, t 65e,B - T 65E, T 76/A, T 100/a, TP 80E, tp 100/B, TP 132r/A, TP 132 /A.
