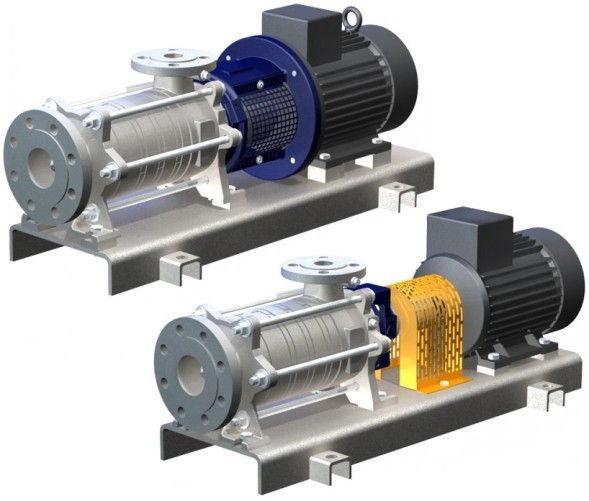

Self-priming vortex pumps of the series ASK /ASK-MK from the company Pumping bacon They are designed to work with complex media without solid impurities, for example, a very low level of height of the liquid column above the suction nozzle, single- and multi-stage configurations are available. The installed magnetic coupling reliably separates the functional parts. Practical modular design, mounting on a base plate, horizontal orientation of the installation. The suction nozzle is located on the axis of rotation, the feed is directed radially upwards.
Cast iron or stainless steel grade 1.4851 are used as structural materials of the pump body, the impeller can be made of tin bronze or corrosion-resistant steel grade 1.4408, the shaft is 1.4122 or 1.4571. The drive unit consists of highly efficient three-phase electric motors with surface cooling and protection against penetration of water and dust.
Pumping liquids: water, condensate, distillate, liquefied gas, solvents, refrigerants, etc.
Limitations: no abrasive particles.
Areas of application: water supply, chemical industry, irrigation, agricultural, food industry and other industries and technological processes.
Technical characteristics of Speck Pumpen vortex pumps of the ASK /ASK-MK series
- Volume consumption: up to 35 m3/hour;
- Discharge height: up to 324 m;
- Nominal pressure (PN): up to 40 bar;
- Number of steps: 1 - 8;
- Liquid temperature: up to 120 °C;
- Installation: horizontal, on a base plate or block.
Standard sizes of Speck Pumpen pumps of the ASK /ASK-MK series
with mechanical seal: ASK-2001, ASK-2002, ASK-2003, ASK-2004, ASK-2005, ASK-2006, ASK-2007, ASK-2008, ASK-3201, ASK-3202, ASK-3203, ASK-3204, ASK-3205, ASK-3206, ASK-3207, ASK-3301, ASK-3302, ASK-3303, ASK-3304, ASK-3305, ASK-3306, ASK-3307, ASK-3308, ASK-4001, ASK-4002, ASK-4003, ASK-4005, ASK-4006, ASK-4007, ASK-4008, ASK-5001, ASK-5002, ASK-5003, ASK-5004, ASK-5005, ASK-5006, ASK-5007, ASK-5008, ASK-6501, ASK-6502, ASK-6503, ASK-6504, ASK-6505, ASK-6506, ASK-6507, ASK-6508
with magnetic coupling: ASK-2001-MK, ASK-2002-MK, ASK-2003-MK, ASK-2004-MK, ASK-2005-MK, ASK-2006-MK, ASK-2007-MK, ASK-2008-MK, ASK-3201-MK, ASK-3202-MK, ASK-3203-MK, ASK-3204-MK, ASK-3205-MK, ASK-3206-MK, ASK-3207-MK, ASK-3208-MK, ASK-3301-MK, ASK-3302-MK, ASK-3303-MK, ASK-3304-MK, ASK-3305-MK, ASK-3306-MK, ASK-3307-MK, ASK-3308-MK, ASK-4001-MK, ASK-4002-MK, ASK-4003-MK, ASK-4004-MK, ASK-4005-MK, ASK-4006-MK, ASK-4007-MK, ASK-4008-MK, ASK-5001-MK, ASK-5002-MK, ASK-5003-MK, ASK-5004-MK, ASK-5005-MK, ASK-5006-MK, ASK-5007-MK, ASK-5008-MK, ASK-6501-MK, ASK-6502-MK, ASK-6503-MK
You can buy Speck Pumpen vortex pumps of the ASK /ASK-MK series, find out the price and more information about the products by contacting our specialists.
